Piezomed
-
High flexibility, minimum setup
Modularity
Maximum modularity

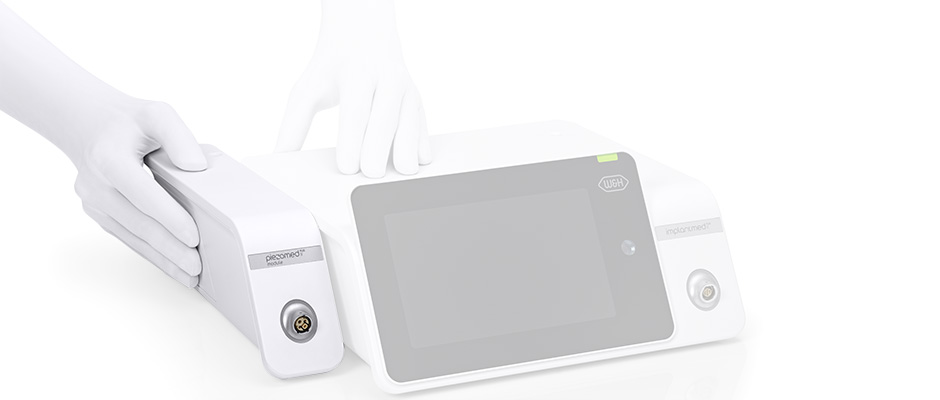

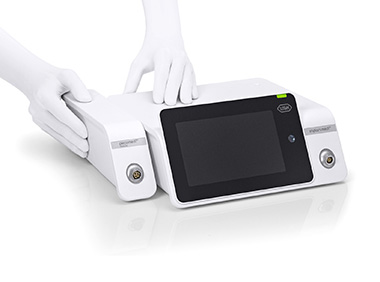

The Piezomed module Plus II* is simply connected to the device via a sliding mechanism – no cables, no additional power supply.
*only in conjunction with Implantmed Plus II![]()
Intelligent Light-Guide
Orientation at a glance

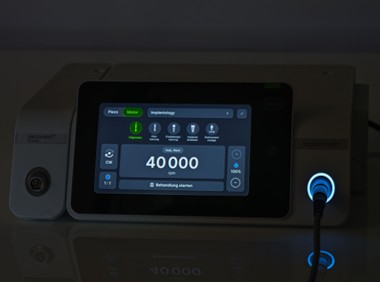

The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.
![]()
Connectivity
Connectivity to Implantmed Plus II

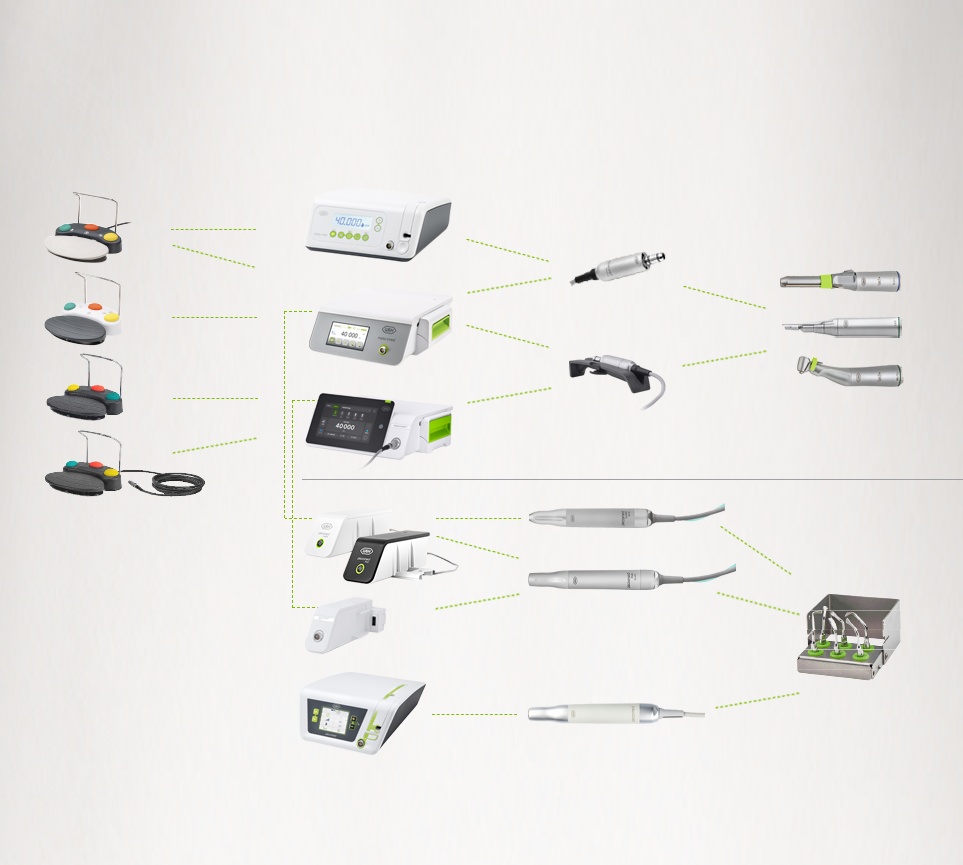

W&H products work hand in hand, are interconnected and complement each other.
![]()
-
Piezomed module Plus II Features at a glance
Features SP-210 M Automatic instrument detection:
Instrument library:
24 watts:
Light (with handpiece SA-40 L):
Modular interface:
Warranty: 12 months
![Piezomed module Plus II]( "Piezomed module Plus II")

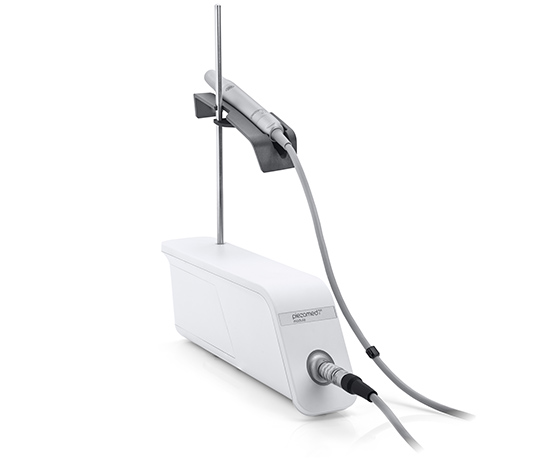

Sales packPiezomed module Plus II
Piezomed module Plus II
Consistente en:
• Module SP-210 M
• Handpiece SA-40 L with light and 1.8 m cable including 5 clips
• Stand
• Universal support
• Instrument changer
• Mains cable
• Disposable irrigation tubings con Y-manifold (6 pcs.)Download Area
FAQ
-
Can third-party instruments be used on the Piezomed or Piezomed modules?
No
a. Different thread
b. The Piezomed instrument detection cannot detect third-party instruments
more -
Piezomed module: can devices be retrofitted on the market?
Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II. more
-
Piezomed module: are the handpieces of the modules SA-40 and SA-40 L compatible with the Piezomed device SA-320?
No, they are not compatible. more
-
Piezomed module: Compatibility of the handpieces with Piezomed module Plus II, Piezomed module Plus
and Piezomed Classic module.
moreHandpieces Piezomed module Plus II Piezomed module Plus Piezomed Classic module SA-40 yes yes yes SA-40 L (light version) yes yes no SA-320 no no no -
How do I connect the Piezomed Module Plus II to the Implantmed Plus II?
Simply remove the side cover from the device and slide the module in from the rear until it clicks into place. No additional cable is required. more
-
Can the SA-40 be used with the Piezomed Module Plus II?
Yes, but automatic instrument detection must be deactivated in the submenu. Settings such as power group, power, and coolant flow must be set by the user according to the instrument card (included with every W&H piezo instrument). more
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Downloads
Videos & Tutorials
-
-
Piezomed module Plus II
Type SP-210 M Maximum power output (ultrasonic): 24 W Operating frequency: 22–35 kHz Coolant flow rate at 100%: at least 90 ml/min Operating mode: S3 (80 s ON/330 s OFF)
maximum 4 repeatsDimensions (height × width × depth): 99 × 93 × 283 mm Weight: 755 g
