High flexibility, minimum setup
Modularity

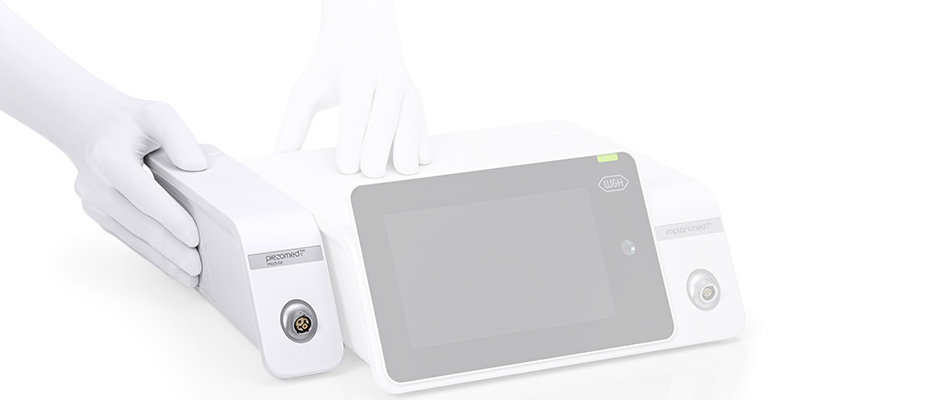

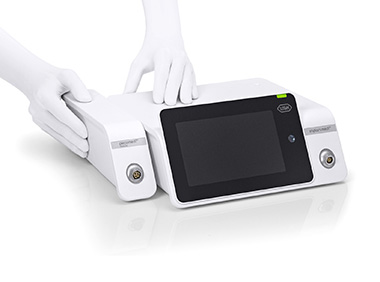

Maximum modularity
The Piezomed module Plus II* is simply connected to the device via a sliding mechanism – no cables, no additional power supply.
*only in conjunction with Implantmed Plus II![]()

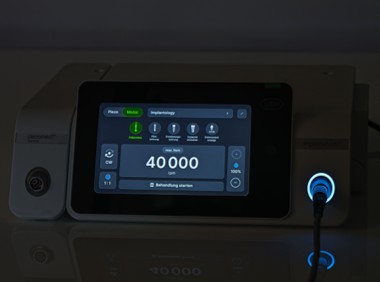

Intelligent Light-Guide
Orientation at a glance
The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.
![]()
Connectivity

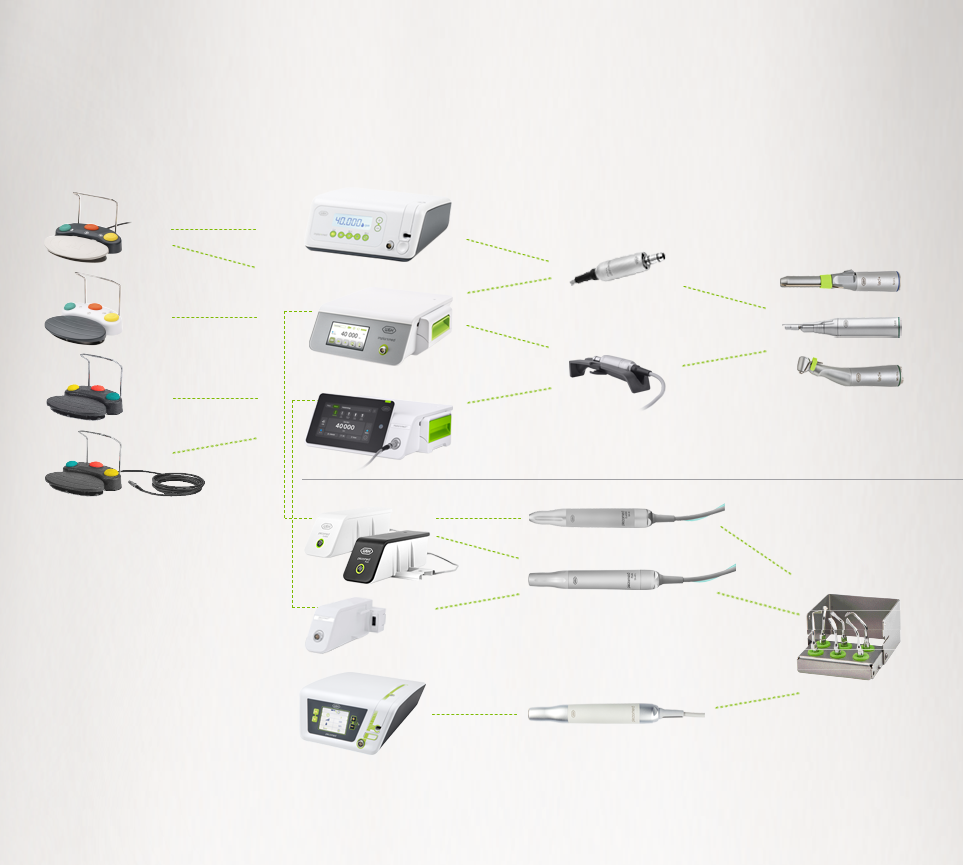

Connectivity to Implantmed Plus II
W&H products work hand in hand, are interconnected and complement each other.
![]()
-

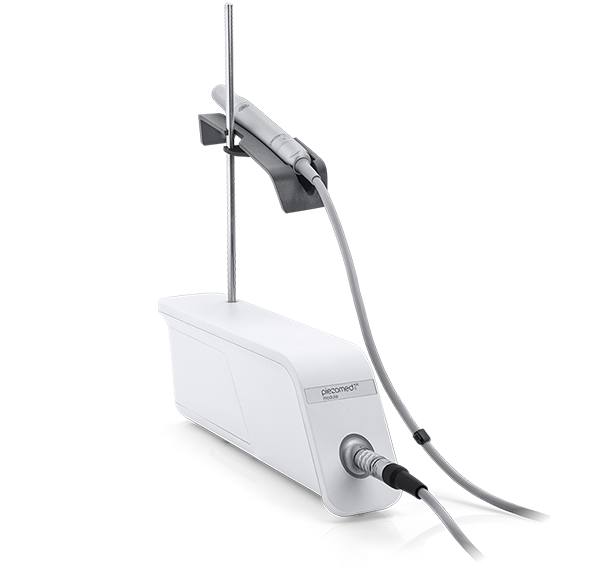

Piezomed module Plus II Features at a glance
Features SP-210 M Automatic instrument detection:
Instrument library:
24 watts:
Light (with handpiece SA-40 L):
Modular interface:
Warranty: 12 months
![Piezomed module Plus II]( "Piezomed module Plus II")

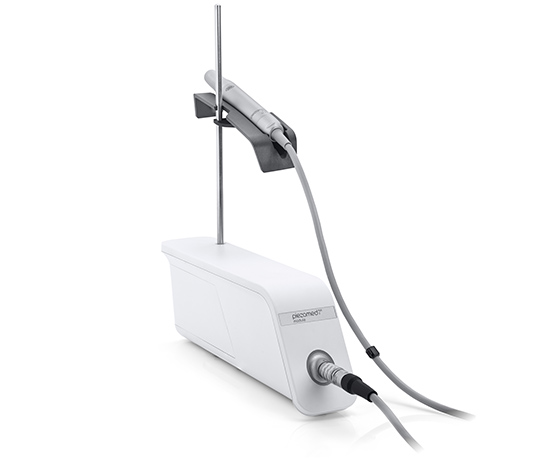

Sales packPiezomed module Plus II
Piezomed module Plus II
Consistente en:
• Module SP-210 M
• Handpiece SA-40 L with light and 1.8 m cable including 5 clips
• Stand
• Universal support
• Instrument changer
• Mains cable
• Disposable irrigation tubings con Y-manifold (6 pcs.)Download Area
FAQs
-
What types of tubing can I use on my device?
For motors with a length of 1.8 m you can use single-use tubings (04363600) or sterilizable ones (0417XXX). For the combination of Implantmed and Piezomed module, we offer a tubing with a Y-valve (08072750). You also can find the appropriate tubings in the instructions for use of the device. more
-
Is every Implantmed compatible with the W&H Osstell ISQ module?
Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected. more
-
Piezomed module: Compatibility of the handpieces with Piezomed Plus module
and Piezomed Classic module.
moreHandpieces Piezomed Plus module Piezomed Classic module SA-40 yes yes SA-40 L (light version) yes no SA-320 no no -
Can the SA-40 be used with the Piezomed Module Plus II?
Yes, but automatic instrument detection must be deactivated in the submenu. Settings such as power group, power, and coolant flow must be set by the user according to the instrument card (included with every W&H piezo instrument). more
-
How do I connect the Piezomed Module Plus II to the Implantmed Plus II?
Simply remove the side cover from the device and slide the module in from the rear until it clicks into place. No additional cable is required. more
Instructions for use
Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
Downloads
Video Tutorials
-
-
Piezomed module Plus II
Type SP-210 M Maximum power output (ultrasonic): 24 W Operating frequency: 22–35 kHz Coolant flow rate at 100%: at least 90 ml/min Operating mode: S3 (80 s ON/330 s OFF)
maximum 4 repeatsDimensions (height × width × depth): 99 × 93 × 283 mm Weight: 755 g
