Can other brands of tubings be used?

No, only W&H-approved irrigation tubings are permitted. This is due to specifications (material, dimensions, coolant flow), which could cause problems like leakage, insufficient cooling, or even damage to the device.

Implantmed Plus & Implantmed Plus II: is it possible to adjust the motor speed with the implant insertion program?

Yes, the torque as well as the speed can be set for implant insertion.

Is every Implantmed compatible with the W&H Osstell ISQ module?

Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected.

What does the LC in EM-19 LC stand for? Is there a LED in the motor?

The LC stands for light contacts. This means that we have integrated an electrical connection into our new motors. The light contacts supply our contra-angle handpieces with the “L” suffix (e.g. WS-75 L) with power, thus providing optimal light at any speed.

Can current contra-angles be attached to motors?

Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19.

Can the contra-angle handpieces be attached to old motors?

No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC.

Can Implantmed devices be retrofitted with the wireless foot control?

Implantmed Plus devices can be retrofitted. Simply plug the supplied dongle into the device and operate it using the wireless foot control. For Implantmed Plus II devices, you must decide whether you want a wireless or wired device version when purchasing. Retrofitting is not possible.

Is it possible to use the Implantmed Classic in combination with the wireless foot control?

No, the Implatmed Classic can only be operated via a wired foot control.

Piezomed module: can devices be retrofitted on the market?

Piezomed module: can devices be retrofitted on the market? "Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II."

Can our customers disassemble the contra-angles?

Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75)

Can I connect the Implantmed Plus II to my practice Wi-Fi?

Yes, the device supports any encrypted 2.4GHz Wi-Fi network.

Can I connect the Osstell Beacon to the Implantmed Plus II?

Yes, the Osstell Beacon can be connected via a USB-A/USB-C adaptor.

Will the implants I use be detected during scanning?

All medical devices with a valid code are displayed on the screen after scanning. When connected to ioDent®, the materials are displayed in plain text (name, serial number, etc.) in the patient documentation.

Do I need a connection to ioDent® to use Implantmed Plus II?

No, not for basic use of the device. However, connecting to ioDent® offers additional features. For example, users can then perform software updates themselves.

Can QR codes and barcodes be scanned?

No. QR codes and barcodes cannot be scanned.

Which codes can be scanned?

DataMatrix codes. They contain structured product information in accordance with the MDR and are standard for medical devices.

Implantmed Plus II

Name: Implantmed Plus II: W&H Oral Surgery device & Implantolgy motor
Brand: W&H

The must-have in Oral Surgery & Implantology

Discover the benefits of the new Implantmed Plus II and Piezomed module Plus II with proven W&H quality and see for yourself why the new OSI platform is a true must-have.

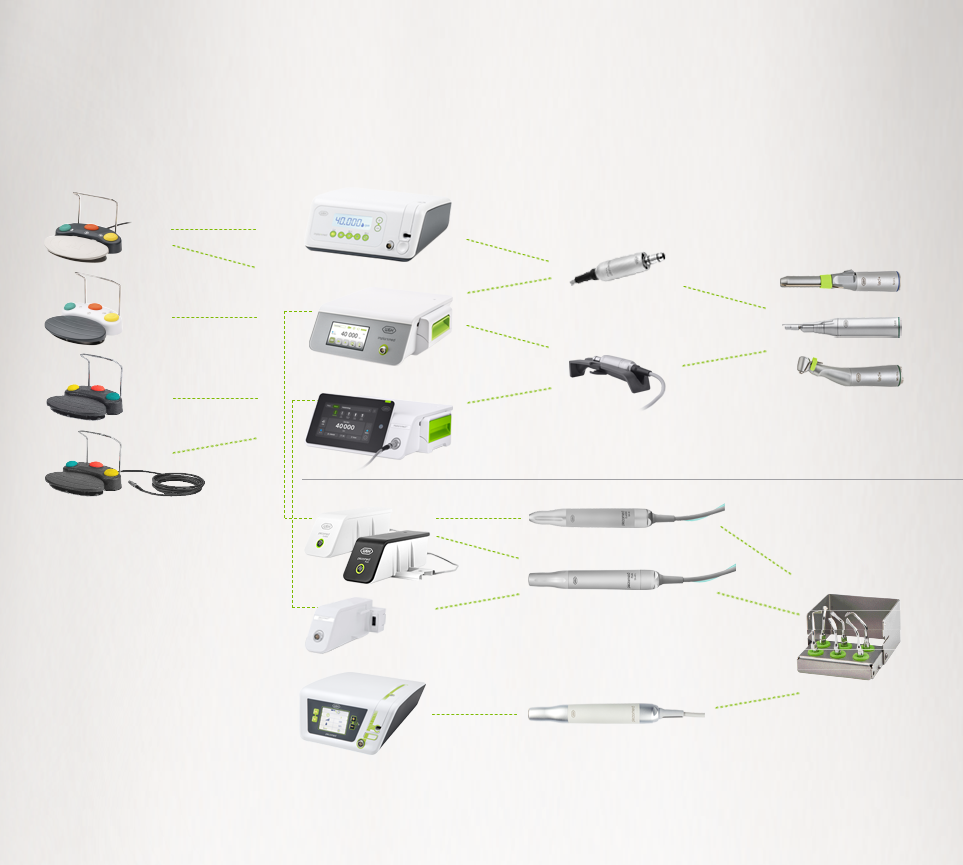

System overview

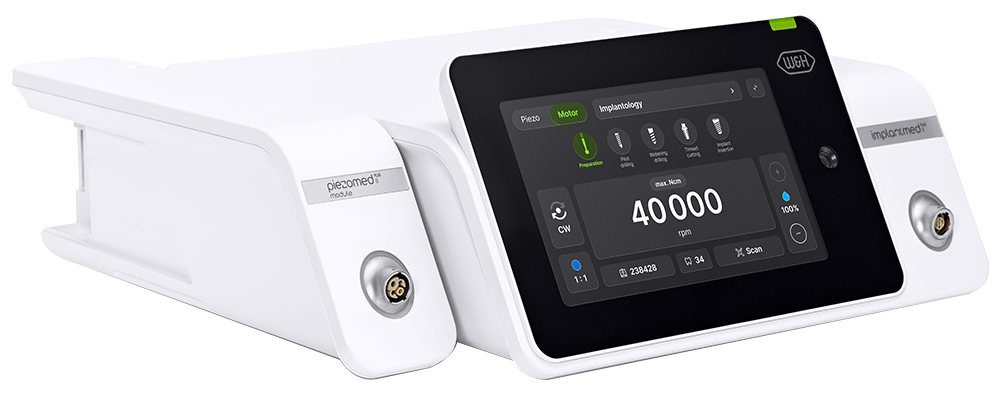

Implantmed Plus II
Technical data

Smart assistance for advanced implantology

Implantmed Plus II is becoming an indispensable assistant in the operating theatre. The aim is to support the user‘s efficiency in the best possible way, whether during implant insertion or wisdom tooth extraction.

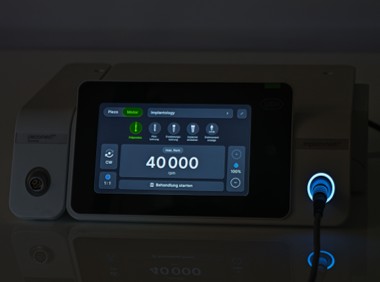

Intelligent Light-Guide

Orientation at a glance

The intelligent Light-Guide ensures immediate orientation even in stressful situations by indicating the respective application.

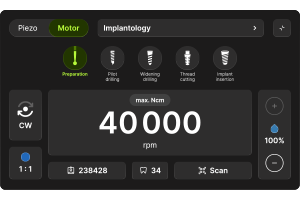

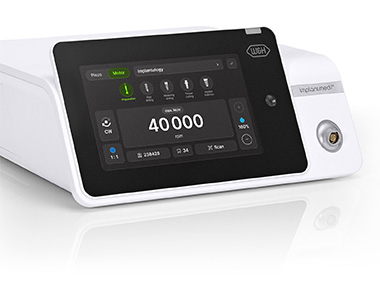

7“ display and intuitive user interface

More clarity, more control

A significantly larger 7" display, which is even more powerful and comes with an optimised user interface, enables simple and intuitive operation.

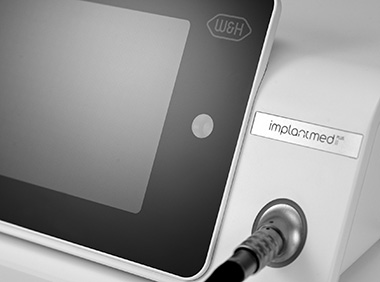

Integrated Scan-Function

Fast, secure documentation and traceability.

With the integrated scan function and the connection to ioDent^®, time-consuming manual documentation of used materials, like implants and biomaterials, belongs to the past.

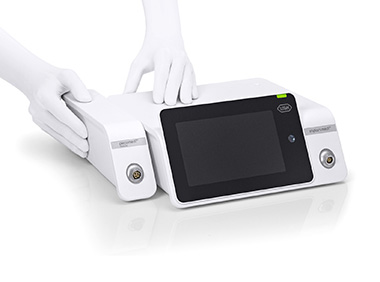

Two in one

Maximum modularity, high flexibility, minimum setup.

The Piezomed module Plus II is simply connected to the device via a sliding mechanism – no cables, no additional power supply.

ioDent^® Smart connection

Intelligent dental solutions. Extended service support.

The ioDent^® system offers intelligent dental solutions and enables extended service support. With built-in Wi-Fi, connecting the Implantmed Plus II to the W&H ioDent^® platform is easier than ever.

For a seamless and efficient treatment workflow
The connection to planning software enables the device to be automatically preconfigured with all relevant parameters before treatment.

Stay in control and never lose track
With a one-time registration of the device, the foundation is laid for a digital device log book throughout its entire lifecycle.

Always up to date
Thanks to remote update capabilities, the device always stays up to date with the latest software. New features can be unlocked directly by the end user via the ioDent^® platform.

Easy and efficient data management
By simply connecting the device, all treatment data, including ISQ values via Osstell Beacon integration, is automatically documented for each patient.

Find out more about ioDent^® from W&H at iodent.com

Implantmed Plus II Features at a glance

Features:		SI-2102 (Scan-Edition)	SI-2101 (wireless)	SI-2100 (wired)
Scan function:			n.a.	n.a.
ioDent® connection:
ioDent® Features	Device logbook & Service interface:
	Remote software update:
	Presetting:
	Digital documentation (Implant passport):
Modularity:
Light-Guide:
Wireless foot control:				n.a.
Wired foot control:		n.a.	n.a.
Osstell Beacon connection:
Warranty:		12 months	12 months	12 months

Your compass for tomorrow‘s
dental surgery

The W&H Oral Surgery Compass serves as a practical guide through the individual treatment steps in oral surgery and implantology – from diagnosis and treatment to final documentation.

W&H Oral Surgery Compass

2. TREATMENT PLANNING

3. PROTOCOL PRESETTING

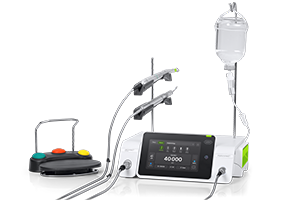

4. TREATMENT

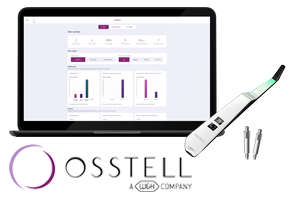

5. MONITORING & DECISION SUPPORT ^{Original Osstell technology}

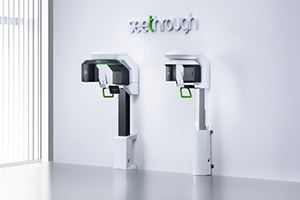

1. IMAGE ACQUISITION

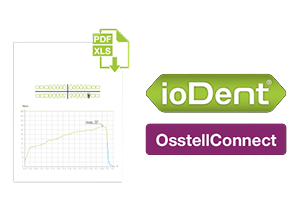

6. DOCUMENTATION

Digital technologies are revolutionising dental treatment. With the optimal integration of devices, software and digital processes, W&H supports users in making every step of treatment efficient, safe and patient-oriented. W&H products work hand in hand, are interconnected and complement each other.

Sales pack
Implantmed Plus II Scan-Edition

Implantmed Plus II Scan-Edition

Consisting of:
• Control unit SI-2102 with scan function
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)

Request Price

Sales pack

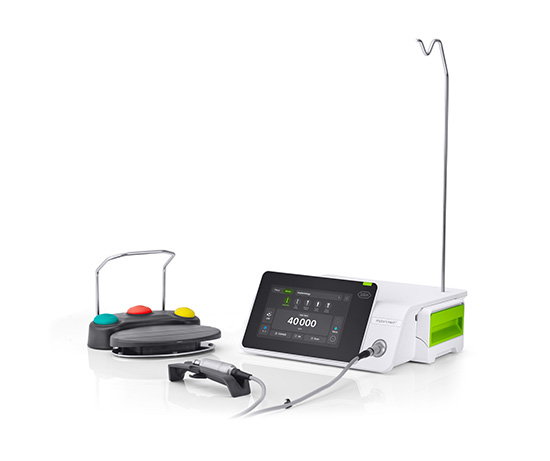

Implantmed Plus II “wireless”

Implantmed Plus II “wireless”

Consisting of:
• Control unit SI-2101
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wireless foot control S-NW3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)

Request Price

Sales pack

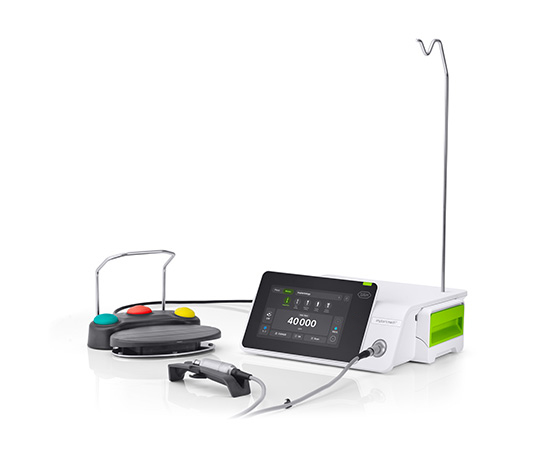

Implantmed Plus II “wired”

Implantmed Plus II “wired”

Consisting of:
• Control unit SI-2100
• Motor EM-19 LC with light and 1.8 m cable including 5 clips
• Wired foot control S-N3
• Stand
• Universal support
• Mains cable
• Disposable irrigation tubings (6 pcs.)

Request Price

Download Area

FAQs

Can other brands of tubings be used?
No, only W&H-approved irrigation tubings are permitted. This is due to specifications (material, dimensions, coolant flow), which could cause problems like leakage, insufficient cooling, or even damage to the device. more
Implantmed Plus & Implantmed Plus II: is it possible to adjust the motor speed with the implant insertion program?
Yes, the torque as well as the speed can be set for implant insertion. more
Is every Implantmed compatible with the W&H Osstell ISQ module?
Implantmed Plus control units SI-1023, SI-1015 and SI-1010 can be upgraded with the W&H Osstell ISQ module. For the new generation of Implantmed Plus II the Osstell Beacon can be connected. more
Which motors are compatible with which Implantmed devices?
See overview table. more
What does the LC in EM-19 LC stand for? Is there a LED in the motor?
The LC stands for light contacts. This means that we have integrated an electrical connection into our new motors. The light contacts supply our contra-angle handpieces with the “L” suffix (e.g. WS-75 L) with power, thus providing optimal light at any speed. more
Can current contra-angles be attached to motors?
Yes. All W&H surgical contra-angles and handpieces can be attached to the motor EM-19. more
Can the contra-angle handpieces be attached to old motors?
No. In order to ensure optimal balance, we have shortened the inner coupling length. Therefore, contra-angle handpieces with only the “L” suffix cannot be attached to older motors, but only to EM-19 and EM-19 LC. more
Are old cable foot controls compatible with the new unit or vice versa?
See overview table. more
Can Implantmed devices be retrofitted with the wireless foot control?
Implantmed Plus devices can be retrofitted. Simply plug the supplied dongle into the device and operate it using the wireless foot control. For Implantmed Plus II devices, you must decide whether you want a wireless or wired device version when purchasing. Retrofitting is not possible. more
Is it possible to use the Implantmed Classic in combination with the wireless foot control?
No, the Implatmed Classic can only be operated via a wired foot control. more
Piezomed module: can devices be retrofitted on the market?
Piezomed module: can devices be retrofitted on the market? "Yes, devices can be retrofitted by users. The following combinations are possible: Implantmed Plus with Piezomed Plus module or Piezomed Classic module. Implantmed Plus II with Piezomed Module Plus II." more
Piezomed module: are the handpieces of the modules SA-40 and SA-40 L compatible with the Piezomed device SA-320?
No, they are not compatible. more
Can our customers disassemble the contra-angles?
Yes. At W&H the letter "S" always communicates, that the surgical contra-angle is disassemble. The letter "I" communicates, that the surgical contra-angle cannot be disassembled (e.g. WS-75 L vs. WI-75) more
Can I connect the Implantmed Plus II to my practice Wi-Fi?
Yes, the device supports any encrypted 2.4GHz Wi-Fi network. more
Can I connect the Osstell Beacon to the Implantmed Plus II?
Yes, the Osstell Beacon can be connected via a USB-A/USB-C adaptor. more
Will the implants I use be detected during scanning?
All medical devices with a valid code are displayed on the screen after scanning. When connected to ioDent®, the materials are displayed in plain text (name, serial number, etc.) in the patient documentation. more
Do I need a connection to ioDent® to use Implantmed Plus II?
No, not for basic use of the device. However, connecting to ioDent® offers additional features. For example, users can then perform software updates themselves. more
Can QR codes and barcodes be scanned?
No. QR codes and barcodes cannot be scanned. more
Which codes can be scanned?
DataMatrix codes. They contain structured product information in accordance with the MDR and are standard for medical devices. more

Instructions for use

Implantmed Plus II

Electric motor EM-19 / EM-19LC

Foot control S-NW3 / S-NW / S-N3 / S-N2 / S-N1

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.
