Why, after reprocessing the instruments in the thermal washer disinfector, did they oxidise or suffer surface discolouration?

Oxidation and/or discolouration phenomena are almost never directly attributable to the activity of the thermal washer disinfector; in most cases they are attributable to interactions between residues of chemical products on the instruments, possibly deriving from the previous decontamination process in a static tank, and the process chemicals of the thermal washer disinfector. In this regard, it is always advisable to rinse the instruments thoroughly before loading them into the thermal washer disinfector.

If I use a thermo washer disinfector to reprocess the instruments, do I risk damaging them and having to replace them more frequently?

Absolutely not. On the contrary, the exact opposite is true. By using an automatic device, such as the thermal washer disinfector, I ensure the best possible cleaning standard for the instruments, validated and not subject to the randomness that derives from the human element represented by the operator, thus optimising the useful life of the instruments themselves.

Can I use accessories such as baskets, supports, etc., from my old thermal washer disinfector?

All manufacturers validate the washing effectiveness of their machines in combination with specially developed accessories. Therefore, neither final success nor validation is guaranteed when using accessories that have not been developed and validated by the manufacturer.

Since I use a sterilizer in my office, why should I also use a thermal washer disinfector?

Thermal washer disinfectors and autoclaves are devices that cannot be missing in a modern workflow, as they perform different but at the same time absolutely complementary tasks. The main objective of a thermal washer disinfector is to clean all dental instruments in a thorough and validated manner, protecting operators from the risk of cross-infections and reducing the pathogenic load thanks to the thermodisinfection process. All these phases are absolutely preparatory in order to ensure that the subsequent sterilization phase can take place in ideal conditions.

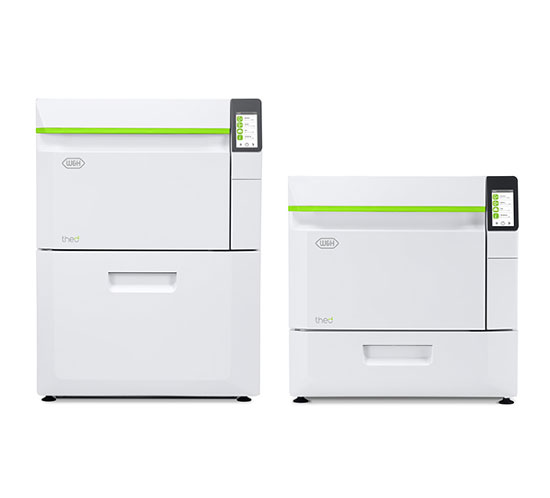

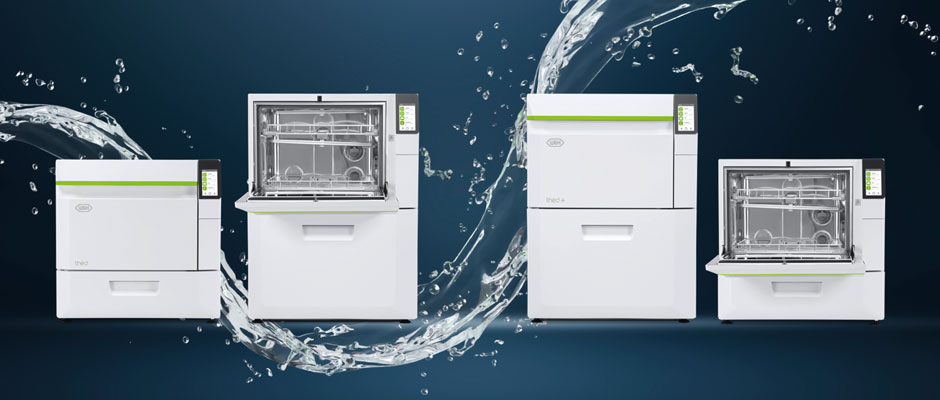

Thermal washer disinfector devices Thed+ and Thed

Name: Thermal washer disinfector devices Thed+ and Thed
Brand: W&H

Thed fulfils every wish

More power, more speed, more flexibility, or all of it? The thermal washer disinfector devices Thed+ and Thed ensure powerful cleaning and disinfection, outstanding load flexibility, reduced reprocessing times and much more for the most demanding clinics. Convince yourself now.

AR/3-D

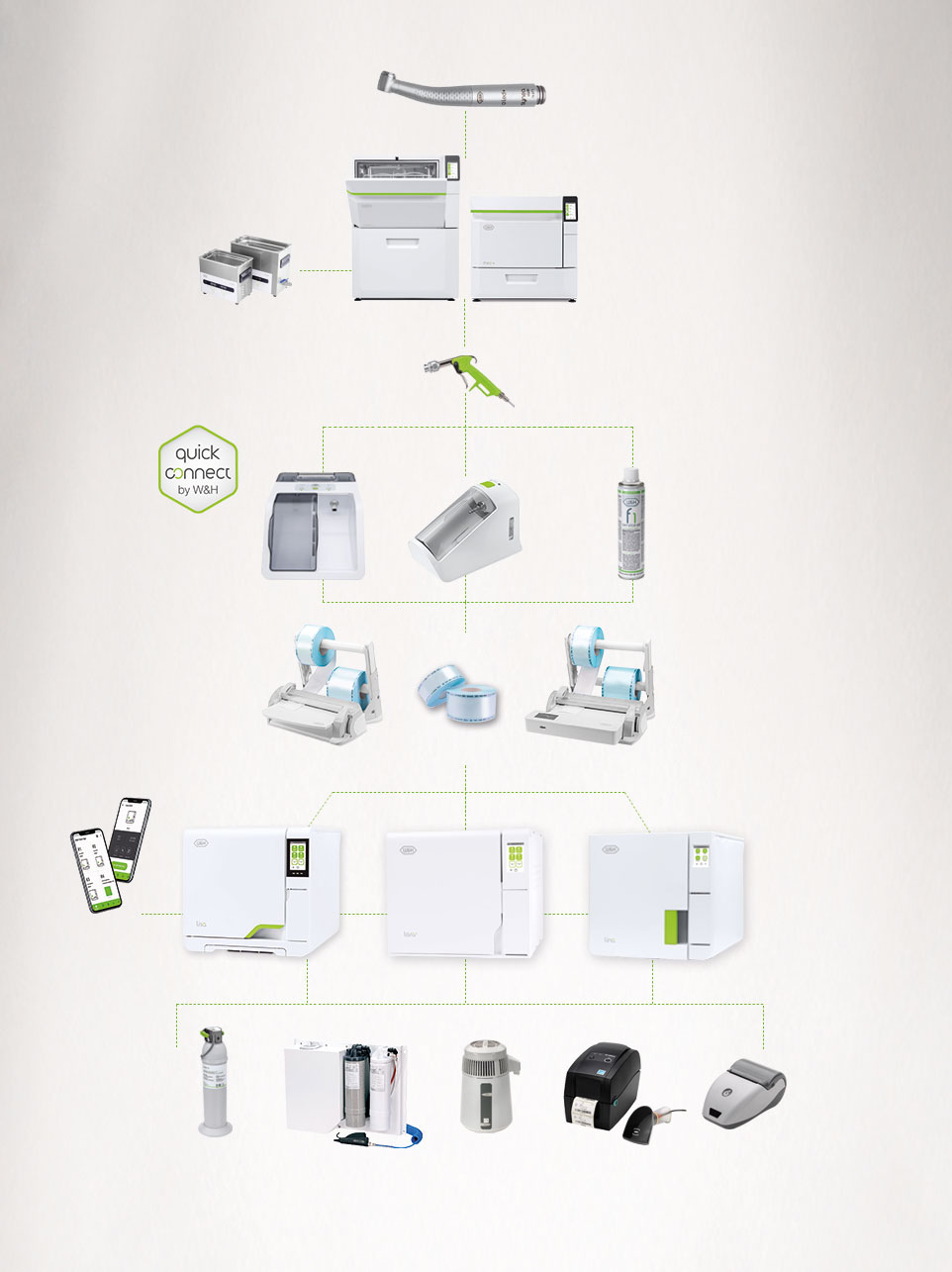

System Overview

- Thed features:

  › Two washing levels
  › Fast cycles with high cleaning performance
  › Active air-drying with HEPA filter
  › Full connectivity options
  › Internal positioning of process chemicals
  › Unique cartridge system (tabletop)
  › Modern design
  › Comprehensive range of accessories
  › User-friendly interface

  Additional Thed+ features:

  › EliSense: device status indicator
  › Automatic rack recognition
  › Automatic manifold injector recognition
  › Automatic program recommendation
  › Automatic adjustment of cycle time, water,
  process chemicals, and power consumption
  › Washing chamber with internal light
Powerful cleaning & disinfection

Active air-drying with HEPA filter

Thed+ fully automatic
- More flexibility & versatility

  More flexibility & versatility

  All Thed devices impress with their flexible and versatile chamber utilisation. Thanks to the compact external dimensions, not only the undercounter devices are easy to position, also the tabletop devices can be placed simply and space-saving on a standard worktop.
- Two washing levels

  Two washing levels

  Depending on the load, one or two washing levels can be used with Thed devices. This enables an optimum capacity utilisation of the 64-litre chamber and makes it possible to cope with different workloads during the working week. The W&H devices are therefore unique in their class.
- Automatic rack recognition

  Thed+:
  automatic rack recognition

  With Thed+, even more wishes come true. The device automatically recognises whether only one or two washing levels are being used and automatically adjusts the cycle time, water, process chemicals, and power consumption.
- Powerful cleaning & disinfection

  Powerful cleaning & disinfection

  The cleaning and disinfection of the load is not only powerful and simultaneously gentle, but also fast. Instruments can be cleaned, disinfected, and dried in less than 60 minutes.

  Furthermore, the Thed devices offer a comprehensive set of special programs, so handpieces, for example, can be reprocessed in just 35 minutes. In addition, some program slots are fully customisable and can be programmed according to individual requirements.
- Active air-drying with HEPA filter

  Active air-drying with HEPA filter

  To protect against recontamination, corrosion, and other damage, Thed devices ensure absolutely dry loads with the active air-drying feature. Thus, Thed and Thed+ guarantee the best possible hygiene workflow without additional steps and costs.
- Thed+ fully automatic

  Thed+: fully automatic

  The device also offers maximum convenience with its automatic program recommendation and Eco Dry function. The internal sensor network enables Thed+ to select the appropriate program and adjust the cycle time, as well as the water, process chemicals and power consumption, to the load configuration.

  With the Eco Dry function, Thed+ is able to recognise the amount of load and adjust the optimum duration of the drying time accordingly.
- EliSense Device Status

  Thed+:
  EliSense Device Status

  Thanks to the LED light in the handle, Thed+ provides information about the device status at a glance to optimise both the workflow and the output.

  Cycle in progress: Green light flashes.
  Cycle finished: Green light is static.
  Attention: Yellow light is static.
  Cycle Stop: Red light is static.
More comfort & connectivity

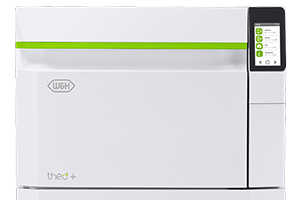

Smooth surface and modern design

The thermal washer disinfectors are distinguished by their high-quality performance and thus ensure a successful, holistic cleaning process for dental instruments. Thanks to their modern, elegant design, they can be perfectly integrated into your reprocessing room.

Advanced traceability and connectivity

› The documentation is automatically saved via a high-capacity USB stick.

› Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.

› The ioDent^® system offers intelligent dental solutions and enables an advanced service support.

› The W&H Steri App allows controlling and remote monitoring of the Thed devices. Moreover, cycle history back-up automatically saved on smartphone ensures extra-safety.

Learn more about ioDent®

Learn more about W&H Steri App

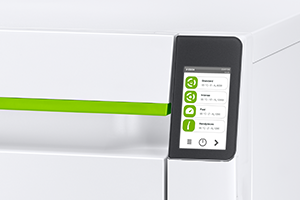

Intuitive navigation

The intelligent menu structure of the Thed devices ensures extraordinarily high operating comfort: you can navigate to the different functions quickly and intuitively using the large 4.3‘‘ colour touch display.

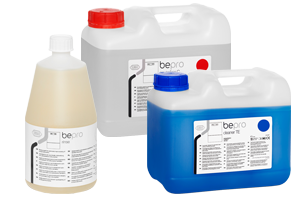

Integrated process chemicals

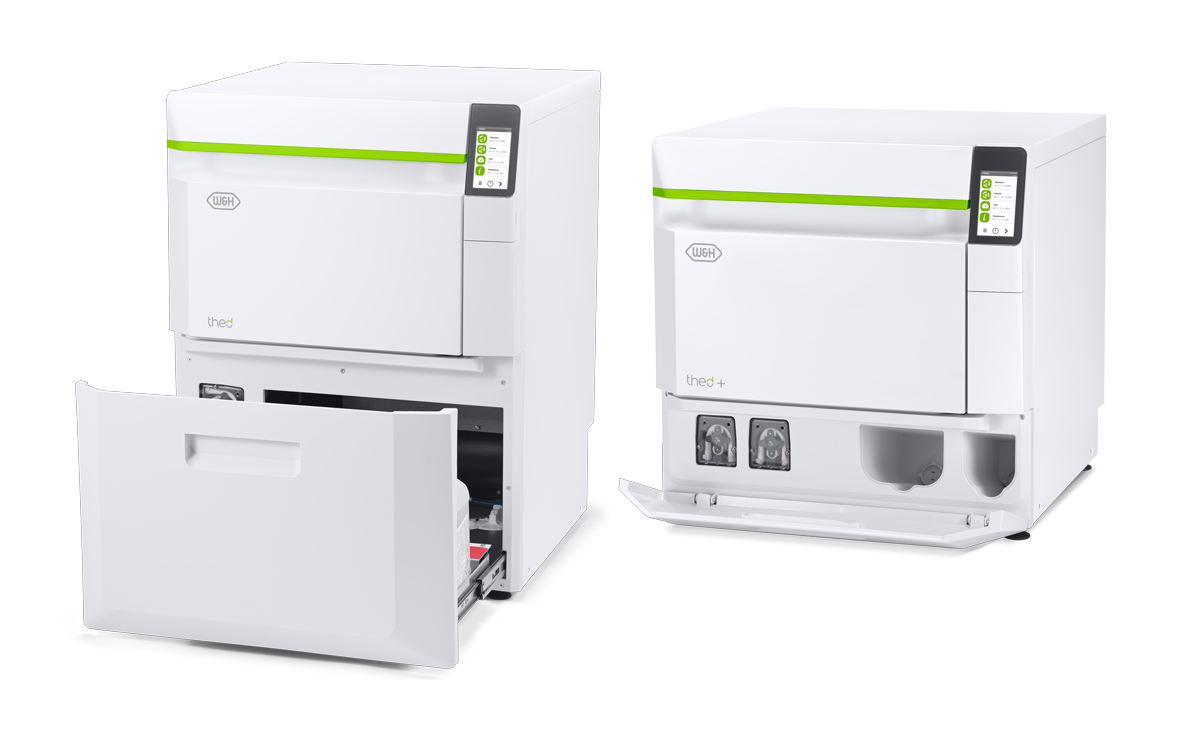

In the undercounter version, the process chemicals are simply positioned in a drawer, with the tabletop version behind a plinth panel. Both save space and offer convenient access. The clear labelling of the required process agents helps to avoid errors.

BePro cleaning & disinfection agents

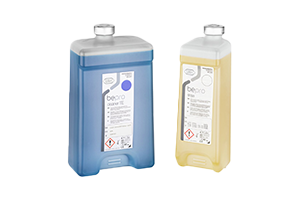

Cartridge system

The tabletop version offers even more convenience. Thanks to the unique W&H cartridge system, changing the process chemicals is even easier. The different shapes of the cartridges ensure that no mistakes can be made when inserting them. In addition, the inclination of the cartridges enables optimum utilisation of the process chemicals.

BePro cleaning & disinfection agents

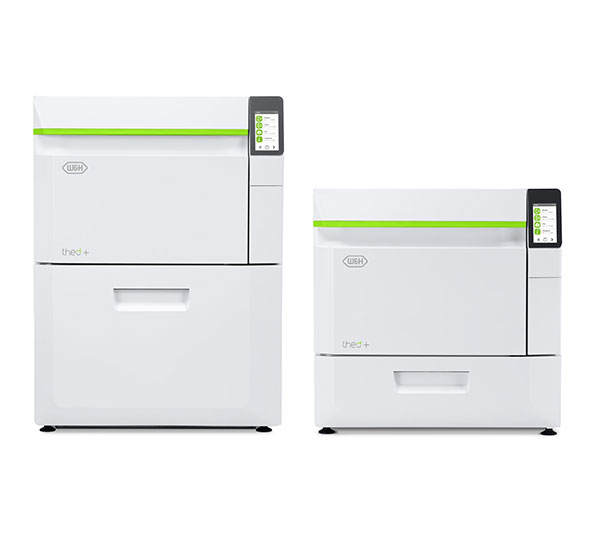

Thed+

Thed+ is sold empty. Add the appropriate equipment to your device.

RID-300 TT
REF 21055000

Thed+ tabletop

RID-300 UC
REF 21056001

Thed+ undercounter

Request price

Thed

Thed is sold empty. Add the appropriate equipment to your device.

RID-300 TT
REF 21050000

Thed tabletop

RID-300 UC
REF 21051000

Thed undercounter

Request price

Starter kit

Includes the perfect range of basic equipment.

Thed is sold empty. Add the appropriate equipment to your device.

Starter kit
REF 19721529

› Lower rack
› Basket (1/4)
› Basket (1/2)
› Vertical support (1/4)
› 3 tray or cassette support

Request price

Injection kit

Particularly suitable for the reprocessing of handpieces and hollow bodies.

Thed is sold empty. Add the appropriate equipment to your device.

Injection kit
REF 19721530

› Lower rack
› Basket (1/4)
› Basket (1/2)
› Vertical support (1/4)
› Injection manifold
› Handpiece adaptor kit (3 pcs.)
› Injector cap (14 pcs.)

Request price

Advanced kit

For all who want to benefit from the flexibility of the two washing levels.

Thed is sold empty. Add the appropriate equipment to your device.

Advanced kit
REF 19721531

› Lower rack
› Upper rack
› Basket (1/4) (2 pcs.)
› Basket (1/2) (2 pcs.)
› Vertical support (1/4)
› Clamp, scissors and impression tray support
› 5 tray or cassette support

Request price
Download Area
FAQ
- Why, after reprocessing the instruments in the thermal washer disinfector, did they oxidise or suffer surface discolouration?
  Oxidation and/or discolouration phenomena are almost never directly attributable to the activity of the thermal washer disinfector; in most cases they are attributable to interactions between residues of chemical products on the instruments, possibly deriving from the previous decontamination process in a static tank, and the process chemicals of the thermal washer disinfector. In this regard, it is always advisable to rinse the instruments thoroughly before loading them into the thermal washer disinfector. more
- If I use a thermo washer disinfector to reprocess the instruments, do I risk damaging them and having to replace them more frequently?
  Absolutely not. On the contrary, the exact opposite is true. By using an automatic device, such as the thermal washer disinfector, I ensure the best possible cleaning standard for the instruments, validated and not subject to the randomness that derives from the human element represented by the operator, thus optimising the useful life of the instruments themselves. more
- Can I use accessories such as baskets, supports, etc., from my old thermal washer disinfector?
  All manufacturers validate the washing effectiveness of their machines in combination with specially developed accessories. Therefore, neither final success nor validation is guaranteed when using accessories that have not been developed and validated by the manufacturer. more
- Since I use a sterilizer in my office, why should I also use a thermal washer disinfector?
  Thermal washer disinfectors and autoclaves are devices that cannot be missing in a modern workflow, as they perform different but at the same time absolutely complementary tasks. The main objective of a thermal washer disinfector is to clean all dental instruments in a thorough and validated manner, protecting operators from the risk of cross-infections and reducing the pathogenic load thanks to the thermodisinfection process. All these phases are absolutely preparatory in order to ensure that the subsequent sterilization phase can take place in ideal conditions. more
Downloads

Thed+/Thed brochure

Instructions for use

Thed+/Thed

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting
Please note: The devices are sold empty. Add the appropriate equipment to your device.

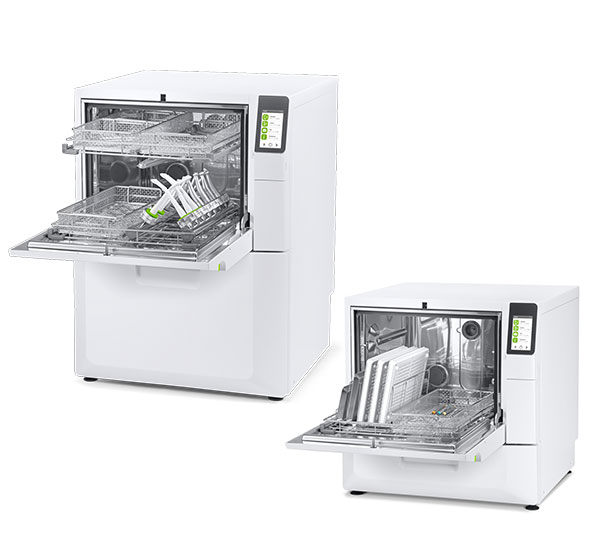

Accessories overview

Thed+ / Thed accessories

for both undercounter / tabletop versions

Lower rack

REF 19721500

Upper rack

REF 19721501

Basket (1/4)

REF 19721502

Basket (1/2)

REF 19721503

Vertical support (1/4)

REF 19721504

Vertical support (1/2)

REF 19721505

Clamp, scissors and impression tray support

REF 19721507

Injection manifold

REF 19721509

Handpiece adaptor kit

REF 19721512

3 tray or cassette support

REF 19721522

5 tray or cassette support

REF 19721523

Cannula nozzle (14 units)

REF 19721510

Injector cap (14 units)

REF 19721511

3-way deviator adaptor

REF 19721516

Adaptor for external spray channel

REF 19721517

Lid for basket (1/4)

REF 19721524

Tip adaptor (Standard)

REF 19721526

Tip adaptor (US)

REF 19721527

Technical data

Trade name:	Thed UC (Plus edition) ⁽¹⁾	Thed TT (Plus edition) ⁽¹⁾	Thed UC	Thed TT
Version:	Undercounter	Tabletop	Undercounter	Tabletop
Power supply:	3N 380–415 V; 220–240 V		220–240 V
Frequency:	50–60 Hz		50 Hz
Current:	13-16-32 A		16 A
Overall dimensions (w × h × d):	598 × 815 × 628 mm	598 × 599 × 628 mm	598 × 815 × 628 mm	598 × 599 × 628 mm
Space required for installation (w × h × d):	600 × 818 × 630 mm	600 × 603 × 630 mm	600 × 818 × 630 mm	600 × 603 × 630 mm
Weight (empty):	72 kg	54 kg	72 kg	54 kg
Weight (fully loaded):	104 kg	76 kg	104 kg	76 kg
Chamber volume:	64 l	64 l	64 l	64 l
Active drying:	●	●	●	●
HEPA filter:	●	●	●	●
Cold water connection:	●	●	●	●
Demineralised water connection:	●	●	●	●
Warm water connection:	○	○	○	○
No. of peristaltic pumps:	3	2	3	2
No. of programs:	4	4	4	4
No. of customisable programs:	4	4	4	4
Cycle time including drying: ⁽²⁾	Standard ⁽³⁾ 55'		Standard ⁽⁴⁾ 84'
	Intense ⁽³⁾ 80'		Intense ⁽⁴⁾ 110'
	Fast ⁽³⁾ 43'		Fast ⁽⁴⁾ 68'
	Handpieces ⁽³⁾ 35'		Handpieces ⁽⁴⁾ 55'

● default
○ optional

⁽¹⁾ The Plus edition refers to the fully featured device
⁽²⁾ Total cycle time may vary depending on the type and load weight, drying phase duration, water supply pressure and temperature, voltage fluctuations on the mains supply, and other factors
⁽³⁾ Three-phase version, ⁽⁴⁾ Single-phase version at 230 V

Thed+/Thed were designed, certified and validated with the most stringent directives and standards:
2017/745 Medical Device Regulation	IEC 61010-2-040 Specific requirements for washer-disinfectors	ISO 15883-1 Washer-disinfectors – Part 1
2012/19/EU Waste Electrical and Electronic Equipment (WEEE)	IEC 61326-1 Electromagnetic compatibility	ISO 15883-2 Washer-disinfectors – Part 2
IEC 61010-1 Safety requirements	IEC 61770 Electric appliances connected to the water mains	ISO 15883-5 Washer-disinfectors – Part 5
