How long should I archive the documentation of regular tests?

Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well.

Does my sterilizer need any periodic qualification/validation?

Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer.

Who should I contact to validate and maintain my sterilizer?

Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorised technician.

Do I need to document the results of all periodic tests?

W&H recommends recording all periodic tests, repairs, and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsorily of recording is regulated by local/national guidelines.

Should I pouch/wrap my instruments and how long can I store them after sterilization?

To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer.

Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines.

Do I need to carry out periodic testing on my W&H sterilizer?

All W&H sterilizers feature test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines.

What is the maximum noise level of the Lisa Mini sterilizer?

The max. noise level of Lisa Mini is 64 dB.

How do I clean the water tank and what products should I use?

Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu.

How do I change consumable components on my sterilizer?

Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu.

Is Lisa Mini requiring compressed air connection?

Lisa Mini requires compressed air connection to perform sterilization cycle. The compressed air specifications are available in the Instruction for Use, chapter “Technical data”.

Which water quality should I use for my sterilizer?

The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use).

Lisa Mini – the fast and small type B sterilizer

Name: Lisa Mini, W&H type B sterilizer for fast handpiece reprocessing
Brand: W&H

Speeds up your daily workflow

Sterilization of unwrapped loads in less than 9 minutes, and much more. The fully equipped type B sterilizer offers the fastest cycles in its performance class. Thanks to its small dimensions, Lisa Mini can be easily positioned in the reprocessing room and offers a wide range of applications.

AR/3-D

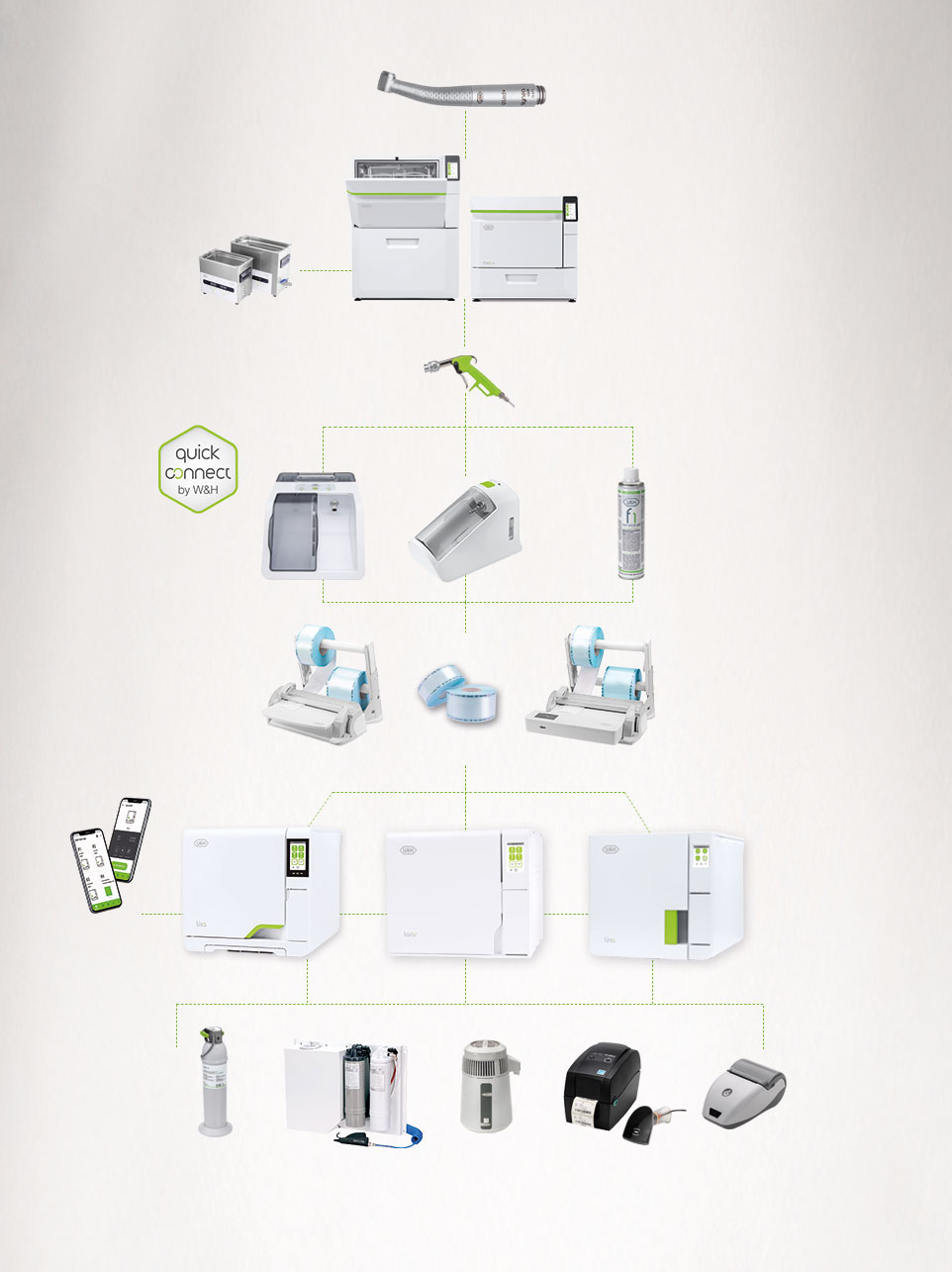

System Overview

Lisa Mini
Technical data

- Speed up cycle times

  With Lisa Mini all load types can be sterilized. Thanks to the different cycles, it is possible to reprocess any instrument, wrapped or unwrapped, with extremely short cycle times.
  In addition, the sterilizer offers one of the fastest type B cycles in its performance class.

  Thanks to the optimised cycle profile, wrapped instruments like handpieces can be sterilized in less than 18 minutes. Unwrapped loads can be sterilized in less than 9 minutes.

  Wrapped: 17' 45''
  Unwrapped: 8' 45''
- Wide range of applications

  Speed up flexibility

  Take advantage of Lisa Mini‘s flexibility. Thanks to its small dimensions, Lisa Mini can be easily positioned in the reprocessing room. Moreover, it offers the possibility to stack items on top. Thus, Lisa Mini offers a wide range of applications, e.g., as a complementary device for the fast reprocessing of instruments, e.g. handpieces, and as emergency back-up of tabletop sterilizers.
- Chamber sizes

  High load flexibility

  Lisa Mini is available with a chamber size of either 3 litres or 5 litres:

  With the 3 litre chamber, Lisa Mini can reprocess up to 1 kg of load, which corresponds to up to 15 handpieces.

  In the 5 litre version, it is 1.5 kg, which corresponds to up to 22 handpieces.
- Trays and cassettes

  Even more flexibility

  The devices come along with 2 trays, an optional 3-tray accessory is available for even more loading flexibility.

  Lisa Mini also offers space for two 5-instruments cassettes in the 3 litre version, and four 5-instruments cassettes or two 10-instruments cassettes in the 5 litre version.
- Traceability

  Speed up traceability

  The technical expertise makes the difference. The Lisa Mini sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.
- Documentation

  Enhanced traceability

  The documentation is automatically saved via a high-capacity USB stick.

  The barcode label printer provides additional support on traceability thanks to the opportunity for linking cycle, sterilization package and patient.

  The cycle report printer ensures adequate paper documentation of the cycle.

  Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.
- ioDent<sup>®</sup>

  ioDent^®

  With ioDent^®, W&H brings the Internet of Things (IoT) directly into you practice – opening up new dimensions in efficiency, convenience, and digital connectivity. The cloud-based platform intelligently connects your W&H devices, making them an active part of your digital workflow.

  Benefit from automated documentation of cycle protocols and routine tests, real-time monitoring, central device management and much more.

  Discover all ioDent^® features
- W&H Steri App

  W&H Steri App

  The W&H Steri App is an advanced smartphone and tablet application that allows controlling and remote monitoring of the sterilizer in your dental practice.

  Main features:
  * Remote control of your sterilizer
  * Advanced traceability with EliTrace
  * Report creation
  * User management
  * Backup functionality

  W&H Steri App
- Speed up with Activation Codes

  Needs and requirements may change. Prepare yourself now: With the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.

  With the EliTrace feature, the sterilization process can be traced and documented down to the individual instrument or kit. Without any additional software or computer.
More about EliTrace

Six steps to your customised sterilizer:
1. Purchase the Activation Code of your choice from your local approved dental supplier.
2. After receiving the related login code, go to activation.wh.com
3. Specify this code along with the serial number and model of your sterilizer.
4. Your individual, secure Activation Code is generated.
5. Enter this code in the menu of your sterilizer.
6. The feature is available.
ACTIVATE FEATURE NOW!
- Intuitive menus

  Speed up daily tasks

  The Lisa Mini touch screen with intuitive menus offers a wide range of options to meet all your needs.

  Simple cycle selection: switched on, the home screen immediately displays the cycle selection.

  Risk-free cycle selection: thanks to the possibility of customising the start screen with only the sterilization cycles used, daily activities are simplified.

  User guidance: instruction is available with the help button in order to assist you during navigation.

  Guided maintenance: a set of 3-D animations shows you the main maintenance operations step by step. This makes operation easy and straightforward.
- Reduced maintenance

  Convincing arguments

  Quality, reliability and reduced maintenance:

  The maintenance interval of the Lisa Mini sterilizer is 4,000 cycles or 5 years thanks to high-quality components.
- Automatic water filling

  Easy filling

  The automatic water filling makes the handling convenient:

  An integrated funnel prevents water splashes during the filling process.

  An automatic water filling valve allows you to connect a demineralization system.

  Manual filling and draining are no longer necessary.

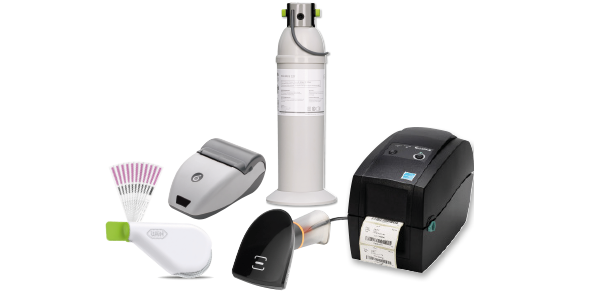

Appropriate accessories

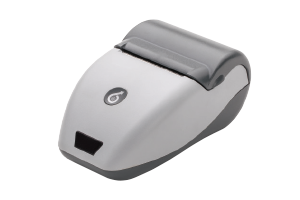

Sprint

Print out cycle protocols on thermal paper with 10-year paper guarantee. More Info!

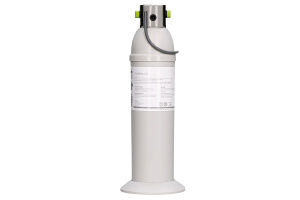

Multidem

Multidem supplies demineralized water for steam generation and can be used for many conventional sterilizers and processing units. As a result, it ensures consistent and optimised performance, thereby extending the service life of your sterilizer. More Info!

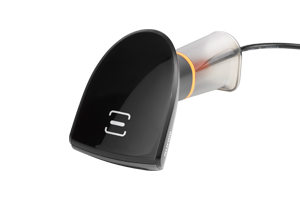

Barcode scanner

This enables you to scan labels into patient files.

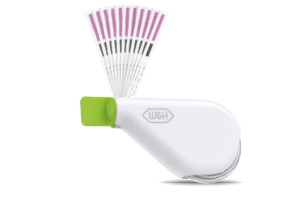

Helix Test

The Helix test ensures optimum process control for type B sterilizers. The QR code on the test strips enables full traceability and easy use with eLog, the digital logbook.
More Info!

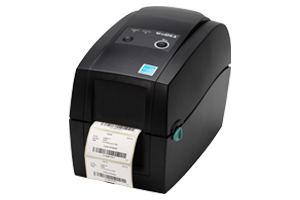

Barcode label printer

The label printer can be connected to the sterilizer to print barcodes. In combination with the integrated data logger, it improves your traceability system. The label printer is a quick and easy tool to link the sterilization cycle with patient files.
More Info!
- Environmentally friendly packaging

  The environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.
W&H AIMS hygiene workflow
Sterilization, hygiene, and maintenance are increasingly important in the dental practice. The new Lisa Mini is an optimally matching part of W&H´s wide range of products for the safe reprocessing of instruments, contra-angle and turbine handpieces according to the recommended, holistic W&H AIMS hygiene workflow.
W&H AIMS

aims.wh.com
Product & consumables

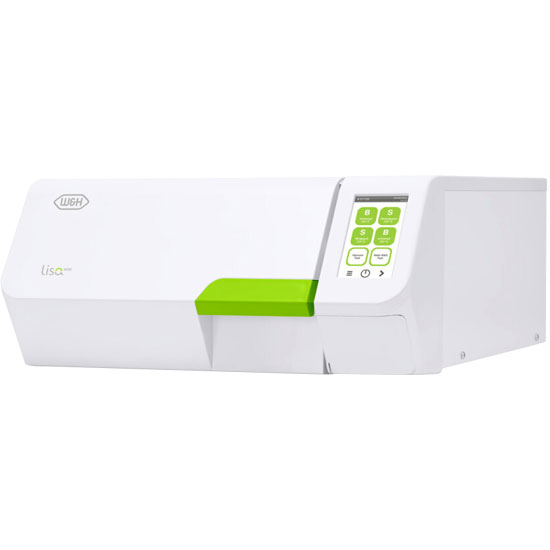

Lisa Mini sterilizer, 3 litres

supplied with 2 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, compressed air tube,
50/60 Hz

Lisa Mini RIS-303 (220 V)
REF 19944100

Chamber size 3 litre, compressed air

Lisa Mini RIS-303 (110 V)
REF 19944200

Chamber size 3 litre, compressed air

Request price

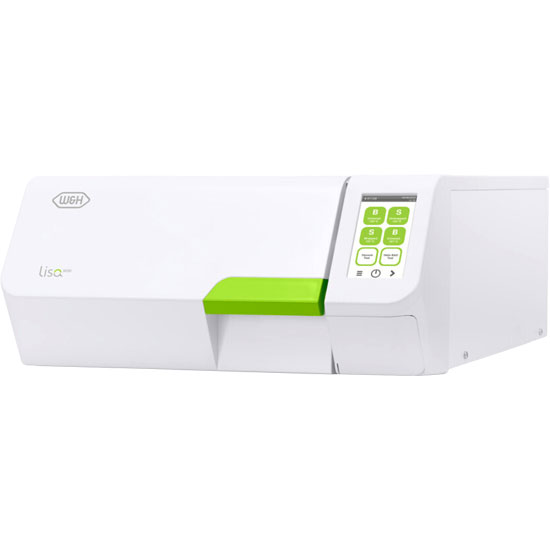

Lisa Mini sterilizer, 5 litres

supplied with 2 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, compressed air tube,
50/60 Hz

Lisa Mini RIS-305 (220 V)
REF 19945100

Chamber size 5 litre, compressed air

Lisa Mini RIS-305 (220 V)
REF 19935100

Chamber size 5 litre, vacuum pump

Request price
Download Area
FAQ
- How long should I archive the documentation of regular tests?
  Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well. more
- Does my sterilizer need any periodic qualification/validation?
  Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer. more
- Who should I contact to validate and maintain my sterilizer?
  Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorised technician. more
- Do I need to document the results of all periodic tests?
  W&H recommends recording all periodic tests, repairs, and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsorily of recording is regulated by local/national guidelines. more
- Should I pouch/wrap my instruments and how long can I store them after sterilization?
  To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer. more
- What is validation?
  Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines. more
- Do I need to carry out periodic testing on my W&H sterilizer?
  All W&H sterilizers feature test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines. more
- What is the maximum noise level of the Lisa Mini sterilizer?
  The max. noise level of Lisa Mini is 64 dB. more
- How do I clean the water tank and what products should I use?
  Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu. more
- How do I change consumable components on my sterilizer?
  Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu. more
- Is Lisa Mini requiring compressed air connection?
  Lisa Mini requires compressed air connection to perform sterilization cycle. The compressed air specifications are available in the Instruction for Use, chapter “Technical data”. more
- Which water quality should I use for my sterilizer?
  The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Water treatment devices Multidem and Osmo are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use). more
more
Instructions for use

Instructions for use

Maintenance Sheet Lisa Mini RIS 303, RIS 305 2024

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure Lisa Mini

Collection brochure

Environmental labelling of packaging

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept

Lisa Mini sterilization cycles

Sterilization cycle:		B Universal 134	B Prion 134	B Universal 121	S Wrapped 134	S Unwrapped
Temperature:		134°C	134°C	121°C	134°C	134°C
Holding time (minutes):		4'	18' 30"	20' 30"	4'	3' 30"
Total cycle duration (minutes) including drying:	3l ⁽¹⁾	19' 45"–23' 45"	34' 15"–38' 15"	37' 15"–38' 45"	17' 45"–19' 30"	8' 45"–10' 30"
	5l ⁽¹⁾	21' 45"–29' 15"	36' 15"–43' 45"	38' 15"–45' 15"	18' 45"–22' 45"	9' 45"–13' 45"
	5l ⁽²⁾	23' 45"–31' 15"	38' 15"–45' 45"	39' 45"–46' 45"	20' 45"–24' 45"	10' 15"–14' 15"
Load type:		All types of load ⁽³⁾			Solid items, Simple hollow items (Hollow B), Specific load: dental load, medical load ⁽⁴⁾ and handpieces
Max. load:		Wrapped and unwrapped items: 1 kg (3 litre)/1.5 kg (5 litre)				Unwrapped items: 1 kg (3 litre)/ 1.5 kg (5 litre)
Max. load:		Wrapped and unwrapped porous/textile: 100 g			unwrapped items: 1 kg (3 litre)/1.5 kg (5 litre)
Test cycles:		Helix/Bowie and Dick/Vacuum
Item supplied with 2 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test, compressed air tube ⁽¹⁾ .

⁽¹⁾ Compressed air, ⁽²⁾ Vacuum pump, ⁽³⁾ Excluded liquid
⁽⁴⁾ Dental load according to ISO 17665-3; for medical load is intended to load up to grade 7 steam penetration according to ISO 17665-3.

Lisa Mini

Trade name: Type:	Lisa Mini RIS-303	Lisa Mini RIS-305
Trade name: Type:	Lisa Mini RIS-303	Lisa Mini RIS-305
Chamber size:	3 litres	5 litres
Power supply:	200–240 V AC; 50/60 Hz; 10 A single phase 100–125 V AC; 50/60 Hz; 12 A single phase	200–240 V AC; 50/60 Hz; 10 A single phase
Power consumption:	2–2.4 kW (220 V)/1.2–1.5 kW (110 V)
Overall dimension (w × h × d):	440 mm × 200 mm × 581 mm	440 mm × 200 mm × 666 mm
Weight:	21.9 kg	24.4 kg
Main/used water tanks:	1.6 l/0.6 l	2.5 l/0.6 l
Working range:	3 to 7 cycles
Average air consumption:	50–60 (N)l/min (13.2–15.8 (N)gal/min)
Working pressure:	5–10 bar (73–145 psi)
Connection types:	5 USB ports, 1 Ethernet port, automatic water filling kit

Lisa Mini sterilizers were designed, certified and validated with the most stringent directives and standards:
2017/745 Medical Device Regulation	IEC 61326-1 Electromagnetic compatibility	IEC 61770 Electric appliances connected to the water mains
2019/19/EU Waste Electrical and Electronic Equipment	IEC 61010-1 Safety requirements	EN 13060 Small steam sterilizers
2014/68/EU Pressure Equipment Directive	IEC 61010-2-040 Specific requirements for steam sterilizer	> The sterilizer can be validated according to EN ISO 17665-1
