Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines.

Do I need to document the results of all periodic tests?

W&H recommends recording all periodic tests, repairs and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsoriness of recording is regulated by local/national guidelines.

How long should I archive the documentation of regular tests?

Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well.

Does my sterilizer need any periodic qualification/validation?

Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer.

Whom should I contact to validate and maintain my sterilizer?

Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorized technician.

Should I pouch wrap my instruments and how long can I store them after sterilization?

To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer.

Which water quality should I use for my Lexa Plus sterilizer?

The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Multidem system and OSMO are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use).

Do I need to carry out periodic testing on my W&H Sterilizer?

All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines.

How do I clean the water tank and what products should I use?

Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu.

What is the maximum noise level of the Lisa Mini sterilizer?

The max. noise level of Lisa Mini is 64 dB.

How do I change consumable components on my sterilizer?

Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu.

Lexa Mini – the rapid class B sterilizer

Name: Lexa Mini, the fast and compact class B sterilizer from W&H.
Brand: W&H

A new kind of clean

This Class B rapid sterilizer is packed with innovation and focused on what matters most to your practice – reliability, efficiency in sterilization, and safety. Using all the advanced technology of our renowned Lexa sterilizers, it now comes in a compact size, perfectly fitting into your dental practice’s workflow.

AR/3-D

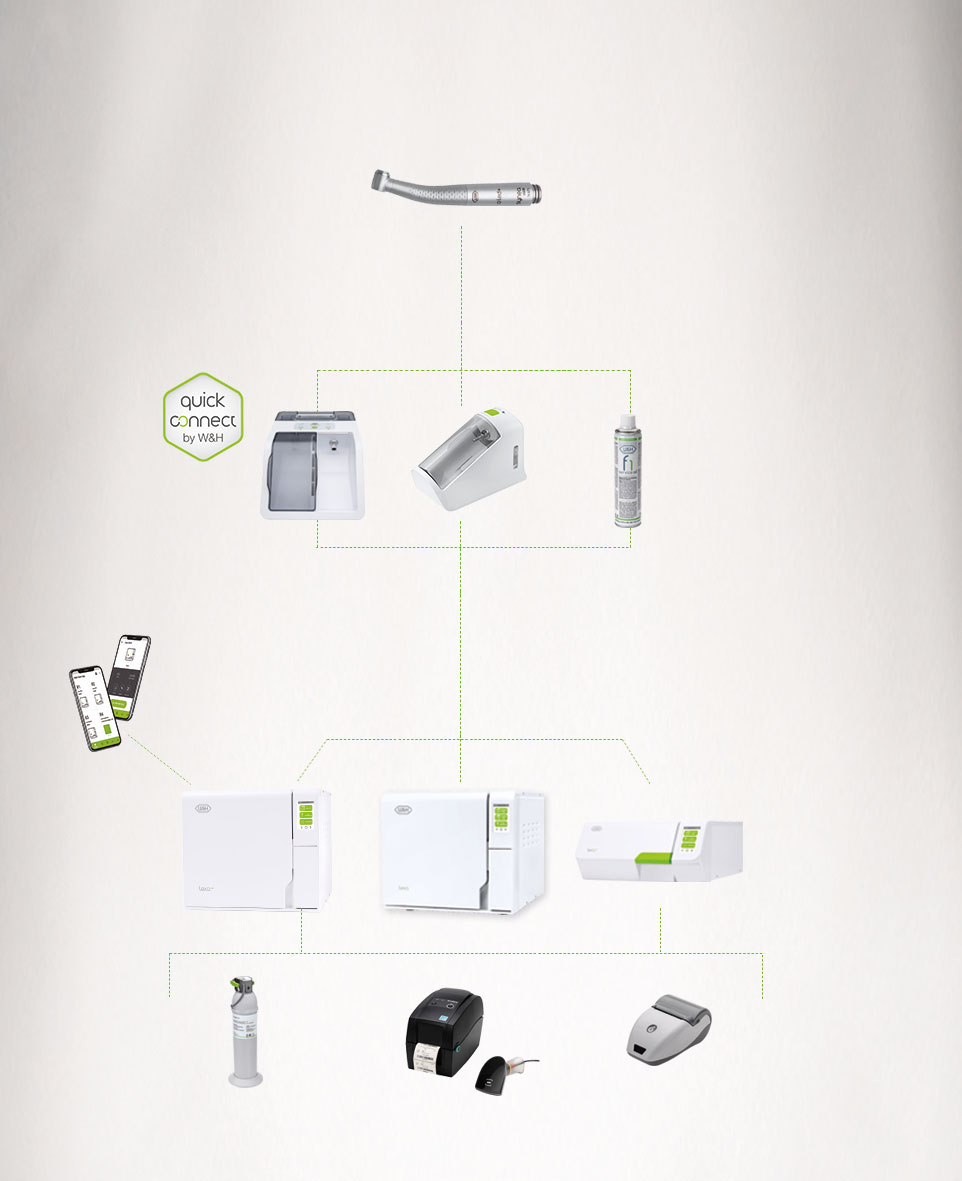

System overview

Lexa Mini
Technical Data

- Moving at The Speed of Bright.

  This rapid sterilizer has faster cycle times compared to other compact sterilizers in its class and can achieve complete sterilization in as little as 23 minutes, including drying time for maximum efficiency.
- If It’s Not Dry, It Might Not Be Sterile.

  Lexa Mini’s closed-door drying technology delivers bone dry loads, ready for immediate use at the end of every cycle, minimizing the risk of cross contamination.
- Wide range of applications

  MORE VERSATILE

  Lexa Mini’s versatility offers several advantages with its wide range of applications. This rapid sterilizer can be used as a complimentary device for fast sterilization of handpieces and also as an emergency back-up to tabletop sterilizers.
- The Virtues of Versatility

  The Virtues of Versatility.

  The Lexa Mini is a highly versatile rapid sterilizer available in two sizes: a 5 liter model for up to four exam cassettes and a 3 liter model for up to two cassettes. It supports various sterilization cycles, including options for wrapped, unwrapped, and low-temperature loads, and features a vacuum pump for setups without an air line, as well as an air ejector for those with an existing air line.
- Chamber sizes

  High load versatility

  Lexa Mini is available with a chamber size of either 3 liters or 5 liters.

  With the 3 liter chamber, sterilize up to approximately 2.2 lbs. or up to 15 handpieces.

  For the 5 liter chamber, sterilize up to approximately 3.3 lbs. or up to 22 handpieces.
- Trays and cassettes

  Tray and cassette versatility

  Both the 3 and 5 liter sterilizers come with 2 trays and an optional 3-tray accessory is available for even more loading flexibility. Lexa Mini also offers space for the following cassette configurations:

  3 liter cassette configuration:
  Two 5-instrument cassettes

  5 liter cassette configuration:
  Choose from either four 5-instrument cassettes
  or two 10-instrument cassettes
- MORE CONVENIENT

  Auto Drain. Auto Fill. Auto Awesome.

  Auto drain and auto fill are standard features of Lexa Mini. Auto fill adds convenience by ensuring fresh water delivery for every cycle, every time. Auto drain saves time for your staff, making the manual process of emptying dirty water bottles a thing of the past, streamlining your sterilization process efficiently.
- Every Cycle

  Keeping It Fresh …

  Like all W&H Lexa sterilizers, Lexa Mini offers the same innovative technology utilizing a separate clean water tank to ensure fresh water is used for every cycle and one to collect the dirty water during the cycle.
- Closed-door drying

  We Have a Closed-Door Policy

  Closed-door drying has been shown globally to be an extremely effective method of drying instruments to ensure bone dry, sterile loads. If your load is not dry, it might not be sterile.
- Traceability

  Sterilize Wisely

  Lexa Mini offers EliTrace providing enhanced traceability with an advanced documentation system that offers full traceability down to a single instrument.

  Cycle documentation is automatically saved to a USB stick. This results in a higher level of safety for both your practice and your patients making Lexa Mini the wise choice for sterilization.
Master the Flow
- Streamlining sterilization enhances efficiency and patient experience

  Lexa Mini is not just a sterilizer; it’s the heartbeat of a dental practice, keeping every operation running smoothly and efficiently. Lexa Mini integrates seamlessly into your sterilization area, offering multiple product options to meet the needs of your practice by optimizing workflow.
  Its compact dimensions offer the possibility to stack multiple sterilizers or other devices on top, to save on counter space in your sterilization area. It provides a wide range of applications as a complementary device for the sterilization of handpieces, or as a back-up for your tabletop sterilizers. Its 4.3” touch screen display offers easy operation and user-friendly menu structure with a range of options to make your daily work easier, faster, and more efficient.

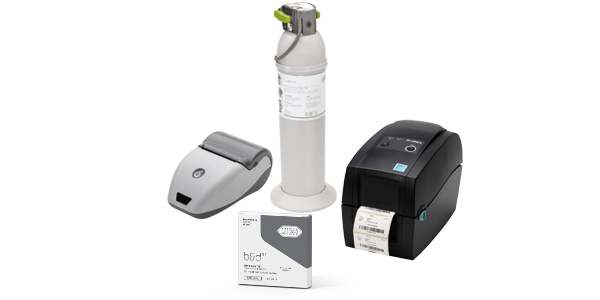

Need Accessories?

We Thought of That!

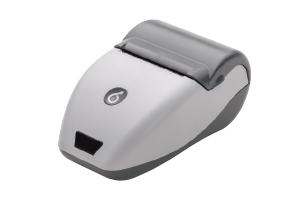

Sprint

Print out cycle protocols on thermal paper with 10-year paper guarantee. More info!

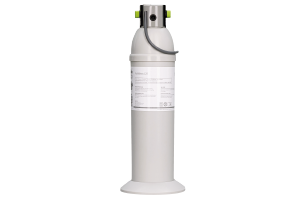

Multidem

Multidem provides demineralized water for steam generation, suitable for various conventional sterilizers and processing units. It enhances performance and extends the life of your sterilizer. More info!

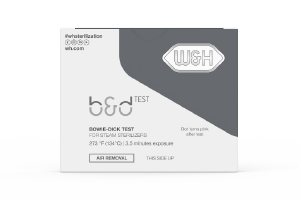

Bowie & Dick Test

The Bowie & Dick test can be performed daily as part of the traceability process to link between sterilization processes.

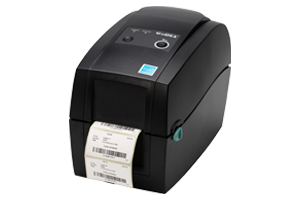

Barcode label printer

The label printer connects to the sterilizer, allowing for barcode printing that enhances traceability by easily linking sterilization cycles to patient records through an integrated data logger.
More info!
Hygiene is Kind of Our Thing.
Hygiene is extremely important in the dental practice. W&H AIMS is here to help with a wide product portfolio, fundamental knowledge, and all relevant information at a glance.
For your safety and the safety of your patients.
W&H AIMS

aims.wh.com
Product & consumables

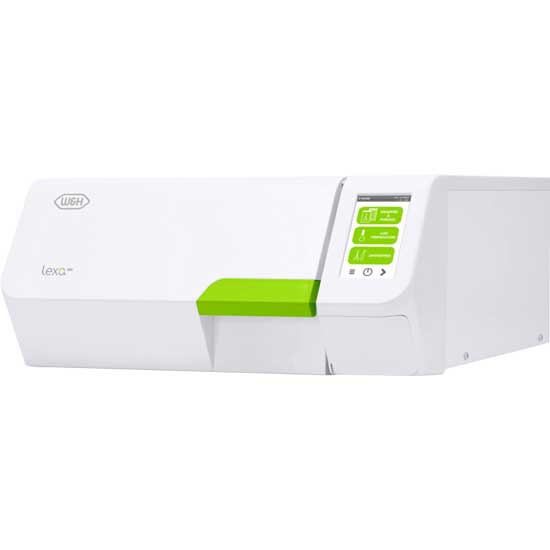

Lexa Mini sterilizer, 3 liters

Sterilizer supplied with 2 aluminum trays, drain hose, tray holder, 8 GB USB drive, door opening tool, factory test, compressed air tube (for compressed air models only),
50/60 Hz

Lexa Mini RIS-303 (220 V)
REF 19944110

Chamber size 3 liter, compressed air

Lexa Mini RIS-303 (110 V)
REF 19944210

Chamber size 3 liter, compressed air

Request Price

Buy

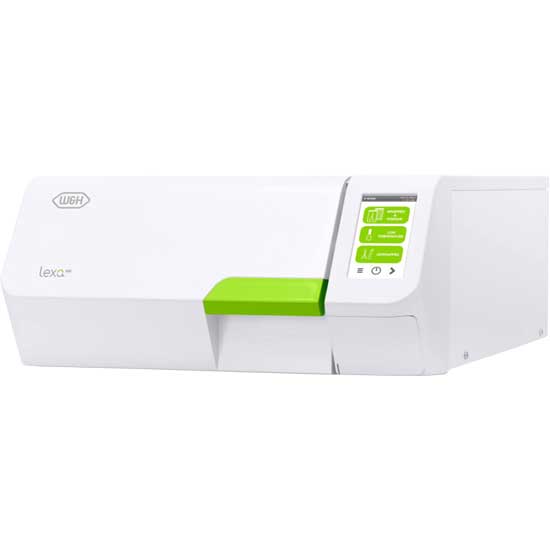

Lexa Mini sterilizer, 5 liters

Sterilizer supplied with 2 aluminum trays, drain hose, tray holder, 8 GB USB drive, door opening tool, factory test, compressed air tube (for compressed air models only),
50/60 Hz

Lexa Mini RIS-305 (220 V)
REF 19945110

Chamber size 5 liter, compressed air

Lexa Mini RIS-305 (220 V)
REF 19935112

Chamber size 5 liter, vacuum pump

Lexa Mini RIS-305 (110 V)
REF 19945210

Chamber size 5 liter, compressed air

Lexa Mini RIS-305 (110 V)
REF 19935212

Chamber size 5 liter, vacuum pump

Request Price

Buy
Download Area
FAQs
- What is validation?
  Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines. more
- Do I need to document the results of all periodic tests?
  W&H recommends recording all periodic tests, repairs and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsoriness of recording is regulated by local/national guidelines. more
- How long should I archive the documentation of regular tests?
  Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well. more
- Does my sterilizer need any periodic qualification/validation?
  Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer. more
- Whom should I contact to validate and maintain my sterilizer?
  Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorized technician. more
- Should I pouch wrap my instruments and how long can I store them after sterilization?
  To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer. more
- Which water quality should I use for my Lexa Plus sterilizer?
  The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardised. Consequently, only water with conductivity of less than 10 µS/cm in North America and 15 µS/cm for the rest of the world should be used for your W&H sterilizer. The Multidem system and OSMO are especially designed to prepare suitable water (see chapter “Water quality” in the Instructions for Use). more
- Do I need to carry out periodic testing on my W&H Sterilizer?
  All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines. more
- How do I clean the water tank and what products should I use?
  Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu. more
- What is the maximum noise level of the Lisa Mini sterilizer?
  The max. noise level of Lisa Mini is 64 dB. more
- How do I change consumable components on my sterilizer?
  Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu. more
more
Instructions for use

Instructions for use

Maintenance Sheet Lexa Mini RIS 303, RIS 305 2024

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Lexa Mini Brochure

Lexa Mini Flyer

FR Lexa Mini Flyer

Environmental labelling of packaging

Video Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept

Lexa Mini sterilization cycles

Sterilization cycle:		Wrapped	Low Temperature	Unwrapped
Temperature:		270°F	270°F	270°F
Sterilization time:		4 min	30 min	4 min
Total cycle duration (minutes) complete drying time:	3 liter (compressed air)	23 min–25 min	47 min–50 min 30 sec	13 min–15 min
	5 liter (compressed air)	23 min 30 sec–27 min	48 min–57 min	13 min 30 sec–17 min
	5 liter (vacuum pump)	25 min 30 sec–29 min	49 min 30 sec–58 min	14 min–17 min 30 sec
Max load:		2.2 lbs. (3 liter) / 3.3 lbs (5 liter) wrapped and unwrapped		2.2 lbs. (3 liter) / 3.3 lbs (5 liter) unwrapped
Sterilizer supplied with 2 aluminum trays, drain hose, tray holder, 8 GB USB drive, door opening tool, factory test, compressed air tube (for compressed air models only).
Meets the requirements of ASME Boiler and Pressure Vessel Code

Lexa Mini

Trade name: Type:	Lexa Mini RIS-303	Lexa Mini RIS-305	Lexa Mini RIS-305
Trade name: Type:	Lexa Mini RIS-303	Lexa Mini RIS-305	Lexa Mini RIS-305
Chamber size:	3 liters (compressed air)	5 liters (compressed air)	5 liters (vacuum pump)
Power supply:	200–240 V AC; 50/60 Hz; 10 A single phase 100-125 V AC; 50/60 Hz; 12 A single phase
Power consumption:	2.0–2.4 kW (220 V)/1.2-1.5 kW (110V)
Overall dimension (w × h × d):	17.3” × 7.9” × 22.9” (440 mm × 200 mm × 581 mm)	17.3” × 7.9” × 26.2” (440 mm × 200 mm × 666 mm)	17.3” × 7.9” × 26.2” (440 mm × 200 mm × 666mm)
Weight (empty):	48.3 lbs (21.9 kg)	53.8 lbs (24.4 kg)	53.8 lbs (24.4 kg)
Main/used water tanks:	0.42 gal/0.16 gal	0.67 gal/0.16 gal	0.67 gal/0.16 gal
Working range:	3 to 7 cycles
Average air consumption:	50–60 (N)l/min (13.2–15.8 (N)gal/min)		n/a
Working pressure:	5–10 bar (73–145 psi)		n/a
Connection types:	5 USB ports, 1 Ethernet (LAN) port, automatic water filling kit and drain kit

Lexa Mini sterilizers were designed, certified and validated with the most stringent directives and standards:
EN 13060 Small steam sterilizers	2014/68/EU Pressure Equipment Directive	IEC 61010-2-040 Safety specific requirements for steam sterilizers
ANSUAAMI ST55 Table-top steam sterilizers	CSA-C22.2 No 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements	IEC 61770 Electric appliances connected to the water mains (avoidance of backsiphonage)
N°2017/745 Medical Device Regulation	IEC 61326-1 Electromagnetic compatibility	2012/19/EU Waste Electrical and Electronic Equipment (WEEE)
UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements	> The sterilizer can be validated according to EN ISO 17665-1
