Are there different Primea Advanced Air Turbines?

Yes, the RG-97 L is equipped with an LED to illuminate the treatment area. The RK-97 L offers you shadowless illumination of the treatment site thanks to 5x Ring LED+. Both turbines have a mini-head and five spray ports, as well as a scratch-proof surface coating.

Can my Primea Advanced Air Turbine be sterilized in a sterilizer?

Yes, if your Primea Advanced Air Turbine is labelled with the symbol "Sterilizable up to the stated temperature".

Can my Primea Advanced Air Turbine be prepared in a thermo washer disinfector?

Yes, if your Primea Advanced Air Turbine is labelled with the symbol "thermo washer disinfectable".

I have just purchased a new W&H Primea Advanced Air Turbine. How can I activate it?

It is not sufficient to purchase the Primea Advanced Air Turbine alone. In order to be able to operate it, you need the entire Primea Advanced Air System – consisting of a turbine, control system, user interface (UI) and the supply hose with Roto Quick coupling. You can add this as an add-on or built-in solution to/in your dental unit.

In which versions can I purchase the Primea Advanced Air System? What are my installation options?

W&H can offer you the Primea Advanced Air System as an external add-on which you can connect to your dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact your authorized W&H service partner to check the inlet pressure of the additional air supply hose. The Primea Advanced Air Built-in System is integrated into a dental unit by selected dental unit manufacturers or their service technicians.

How can I integrate the Primea Advanced Air Built-in into my unit?

The Primea Advanced Air System is integrated into a dental unit by selected dental unit manufacturers or their service technicians.

How do I connect the Primea Advanced Air Add-on to my unit?

You can connect the external Primea Advanced Air System to the dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact an authorized W&H service partner to check the inlet pressure of the additional air supply hose.

Should I always call my authorized W&H service partner first before I send devices/instruments for repair?

If you are unsure of the cause of a problem, it is better to contact your authorized W&H service partner first and talk to a service technician. Together with the service technician, malfunctions may be resolved or it may be determined which items should be sent for repair.

What do I do if my Primea Advanced Air Turbine does not achieve sufficient power/speed?

Please contact your authorized W&H service partner to check the Primea Advanced Air System.

Which rotary instruments can be used with Primea Advanced Air Turbines?

Primea Advanced Air Turbines with small heads (Model RG-/RK--97 L): 16 mm to 21 mm The diameter of the working part is limited to a maximum of 2 mm. Follow the operating instructions of the manufacturer. When using longer or shorter rotary instruments the user must ensure by correct selection of the operating conditions, that there is no danger to the user, patient or third parties.

Which speed setting should I use on the Primea Advanced Air System?

Within the adjustable speed range of 60,000 to 320,000 revolutions, you can set the maximum permitted speed for the respective rotary instrument as specified by the manufacturer.

What is the maximum rotary instrument length approved by W&H for Primea Advanced Air Turbines?

Primea Advanced Air Turbines with small heads (Model RG-/RK-97 L): 16 mm to 21 mm

How does the Roto Quick coupling's W&H Click & Pull System work? How do I remove a Primea Advanced Air Turbine?

Pull the retention sleeve of the Roto Quick coupling back. The turbine can now be easily removed from the Roto Quick coupling. Forcefully pulling the Primea Advanced Air Turbine may cause damage. If excessive force is required to remove the turbine, make sure that the retention sleeve of the Roto Quick coupling can be moved without any problems.

How is the Primea Advanced Air System cleaned? How is it prepared?

For detailed instructions, see the chapter "Hygiene and maintenance" in the respective instructions for Use.

Does the Primea Advanced Air Built-in need to be serviced?

The built-in electronic components do not need to be serviced separately. However, regular servicing should be carried out together with the dental unit at the legally required intervals. This will ensure the proper functioning and safety of the components. For details, see the chapter "Service" in the respective instructions for Use.

Does the Primea Advanced Air Add-on need to be serviced?

Regular servicing of the Primea Advanced Air Add-on including the accessories should be carried out at least once every three years, unless shorter intervals are prescribed by law. The regular service must only be performed by an authorised W&H service partner. For details, see the chapter "Service" in the respective instructions for Use.

Can turbines from other manufacturers be operated in a Primea Advanced Air System?

This is possible. In order to operate standard turbines (from W&H and other manufacturers), the control system of the Primea Advanced Air System can be changed over to standard turbines mode. Turbines which can be connected to the standard 6-hole connection are then operated with a constant 3 bar operating pressure.

What features do the two operating modes "Power" and "Tactile" offer?

In "Power" mode, the set speed is also constantly maintained when pressure mounts on the rotary instrument, which translates to a higher removal rate. The "Tactile" mode permits a reduction in the removal rate when pressure mounts on the rotary instrument.

This product is not available anymore.

Primea Advanced Air turbine

Name: Primea Advanced Air turbine
Brand: W&H

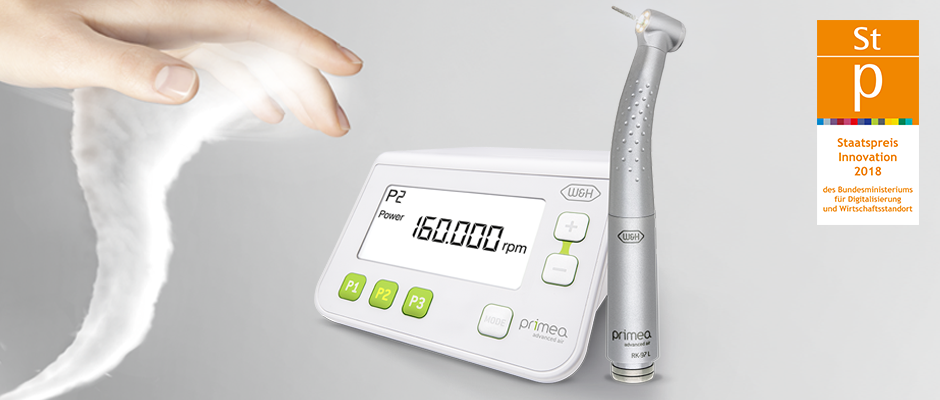

We’ve harnessed air

The world’s first air-driven high-speed drive solution with an adjustable bur speed and constant removal rate, even with increasing pressure.

Work with the optimal application speed and maximum treatment efficacy through the unique symbiosis of power and ease for extra control combined with premium comfort.

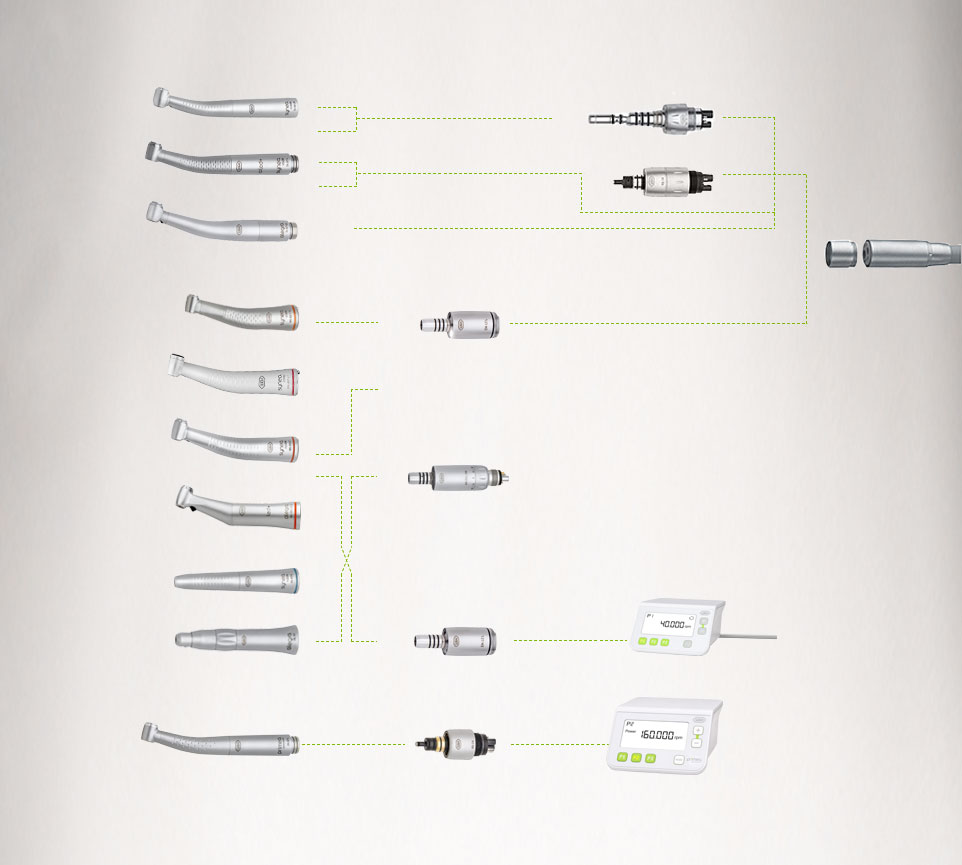

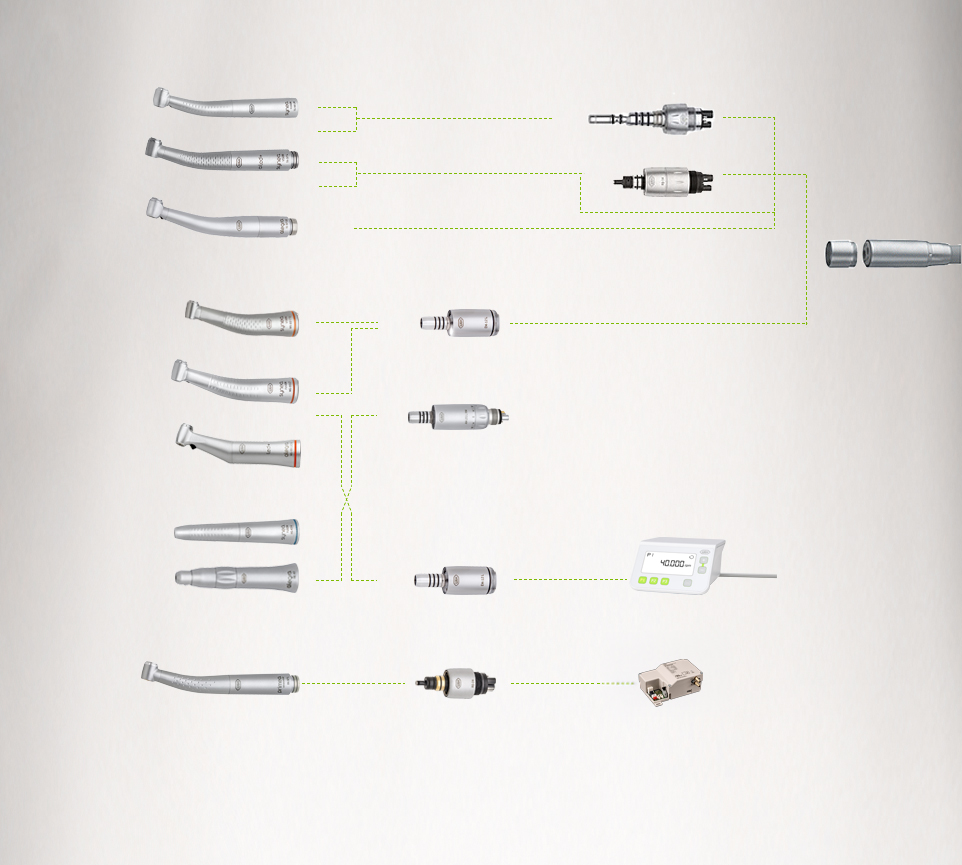

System Overview

- Adjustable bur speed

  Controlled preparation
  at constant speeds
- Optimal speed ranges

  Wide range of applications
- Advanced Air technology

  Loss of speed is a thing of the past

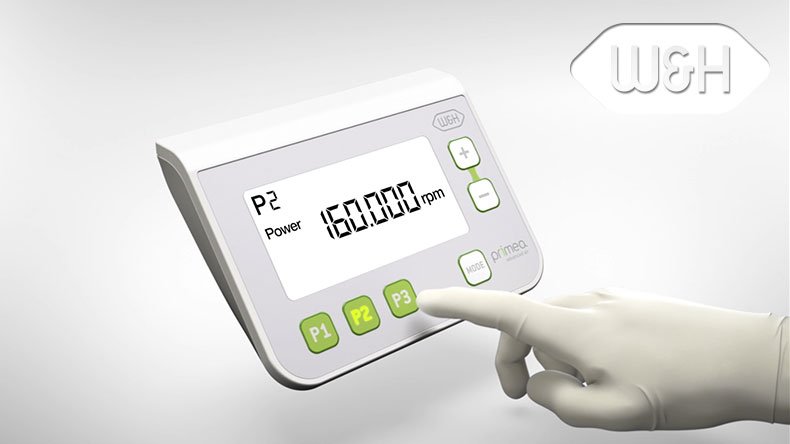

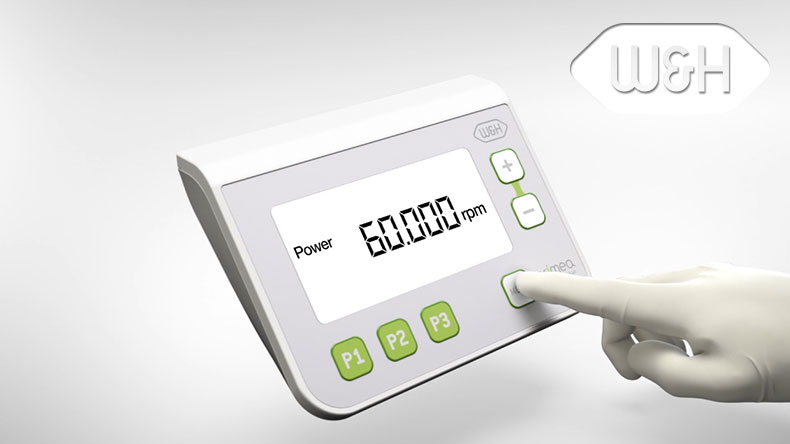

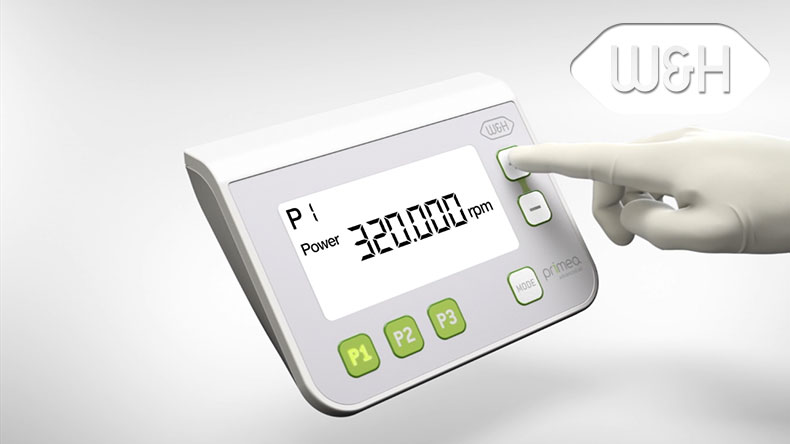

  Speed setting
  Speed check
  Speed regulation

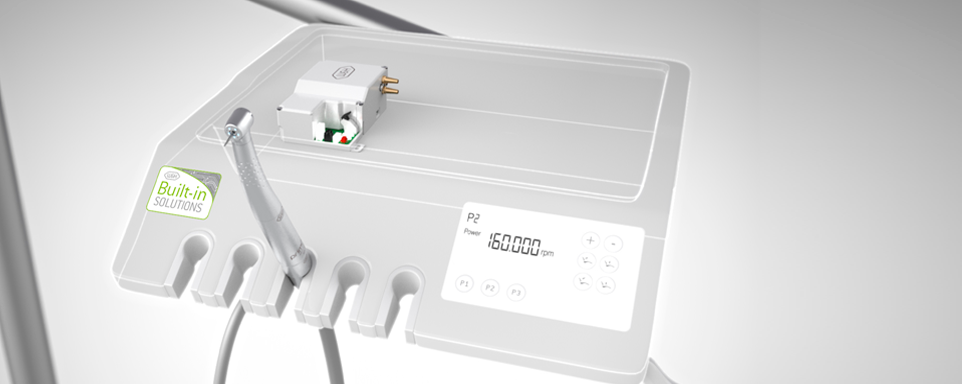

- Built-in Solution

  It can be controlled simply and conveniently
  via your dental unit’s control panel
- Optimal speed

  Adjustable bur speed between 60,000 and 320,000 rpm

  Wide range of applications
  Controlled preparation
  Constant speeds
- Advanced Air technology

  Electronic air control

  Automatic power adjustment
  Constant removal rate
  Best tactile feedback

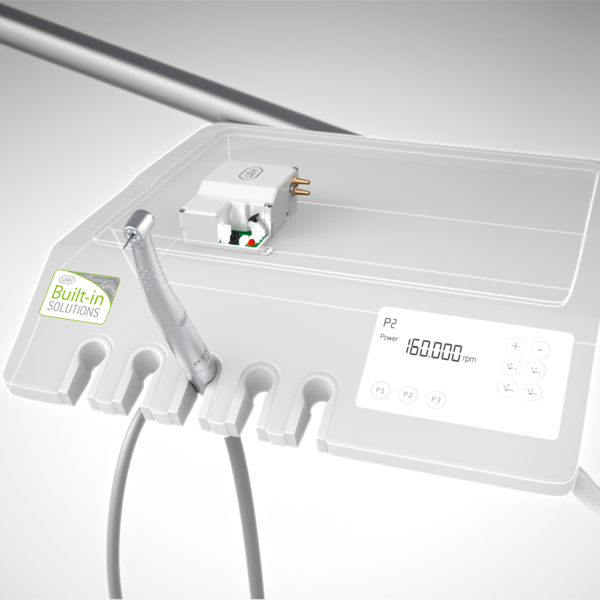

- Built-in Solution

  Fully integrated drive solution

  It can be controlled simply and conveniently via your dental unit’s control panel
It’s in your hands

You can always rely on Primea Advanced Air. It adapts to your personal preparation requirements and works together with you hand in hand.

You regulate the speed and benefit from maximum control. perfect combination, which represents a real competitive advantage for air driven dental units.

An interesting alternative to conventional turbines and red contra-angle handpieces for units with electric motors.
Your advantages at a glance
- Optimal view with 5x Ring LED+
- Perfect cooling thanks to 5x spray

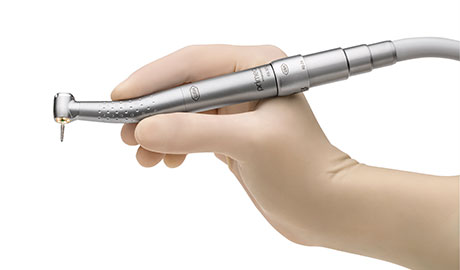

- Fatigue-free working thanks to ideal ergonomics and lightweight handpiece
- Best tactile feedback with quiet operation
- Value retention thanks to special scratch-resistant coating
- Added control thanks to non-slip grip profile
- Hygiene head system for ultimate safety
- Maximum access thanks to small head
Hygiene
head system

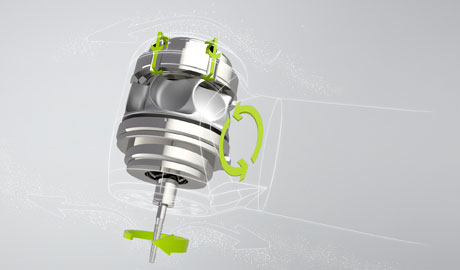

Hygiene head system

The circulating air in the turbine head ensures no aerosol particles are sucked into the turbine as the rotor slows down.

State prize winner 2018

State prize winner 2018

The State Prize for Innovation, awarded by the Federal Ministry for Digital and Economic Affairs.

Optimal speed

Without loss of speed

Built-in solution

Downloads

FAQ´s

Service

Accessories
- Wide range of applications

  Experience high-speed preparation

  Effortless opening of cavities, easy cutting of crowns and bridges, removal of old fillings at lightning speed and finishing of preparation margins with ultimate precision.
- Crown and cavity preparations

  Preparation of cavities and crowns with minimal effort

  The constantly high bur speed of 320,000 rpm allows efficient, controlled and precise performance of high-speed tasks.

  You cannot only open cavities effortlessly, but also shape crown preparations safely and guarantee effective treatment.

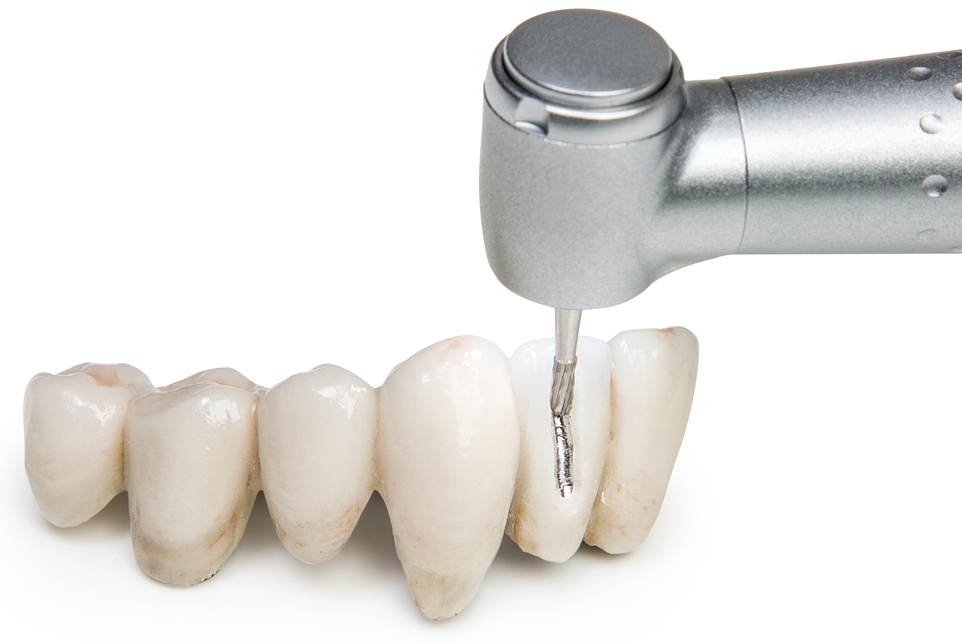

- Cut crowns and bridges

  Cut crowns and bridges faster

  Whether ceramic or metal, the removal and cutting of extremely robust, indirect restorations is a mighty challenge for the dentist and instrument alike.

  The Primea Advanced Air allows you to set the recommended speed for the specific instruments and enjoy optimal, constant removal rate.
- Remove fillings

  Remove fillings safely and efficiently

  From A for amalgam to C for composite to Z for zirconium dioxide: the Primea Advanced Air allows you to remove old fillings quickly and safely. The optimal ratio of minimum heat development to high removal rate is achieved at a speed of 160,000 rpm.
- Controlled finishing

  Controlled finishing

  With the Primea Advanced Air you can perform this sensitive step with a constantly low bur speed of just 60,000 rpm.
  This allows you to profile the preparation surface even more minimally invasively and finish the preparation margins with even more control than with a classic turbine handpiece.
Controlled and precise performance of high-speed tasks

“With the Advanced Air technology I can significantly reduce the treatment time of my patients.”

Dr. James Klim,
Santa Rosa, CA, USA
- Advanced Air technology

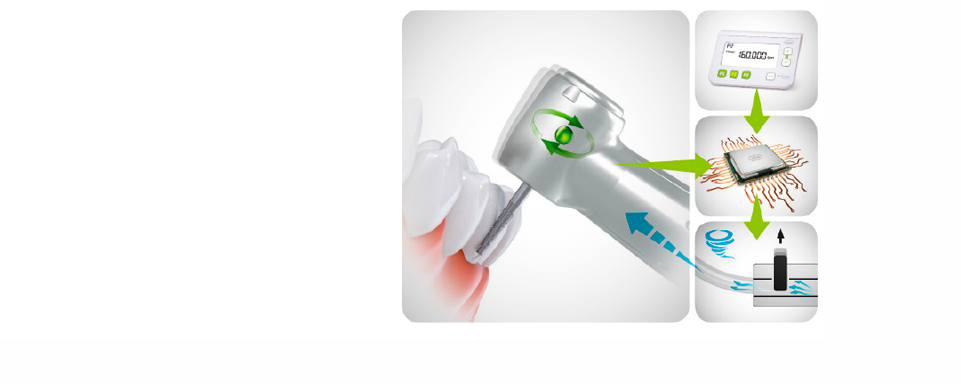

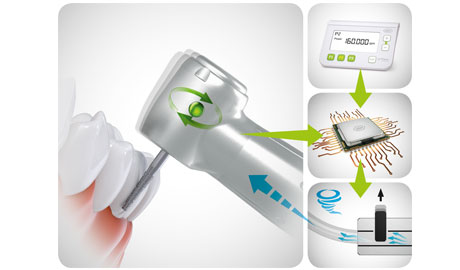

  Advanced Air technology

  With the Advanced Air technology, loss of speed is a thing of the past. A sensor in the head of the turbine measures the actual rotation speed of the bur on the tooth constantly. As soon as the speed threatens to slow, the control module adjusts the air supply immediately so as to ensure the constant removal of tooth structure.
- Automatic power adjustment

  Air control

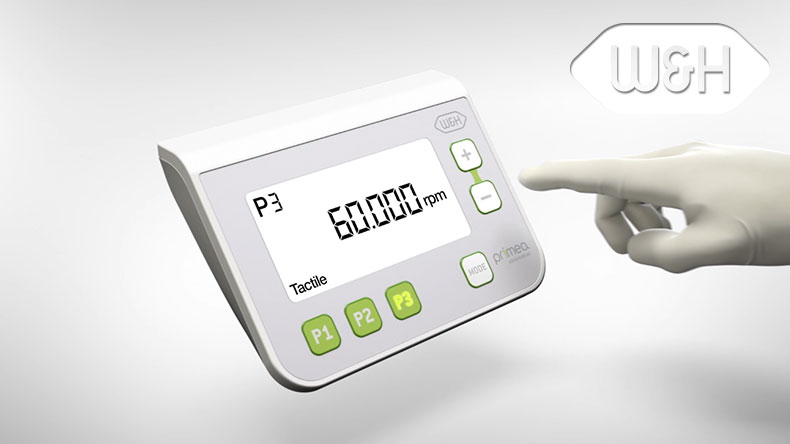

  Speed setting
  You can set the required/recommended bur speed for the respective application on the display.

  Speed check
  The speed actually measured in the bur head is checked against the set speed.

  Speed regulation
  If the actual speed deviates from the set value, the air supply is accordingly adjusted immediately.
- Tactile feedback

  Additional function: operating mode

  Whilst the set speed is always maintained constant under increasing pressure in »Power« mode, »Tactile« mode permits reduction of the speed. This makes it possible to perform sensitive steps with even more control and even more minimally invasively.

  Standard turbine (RK/RG-97 L Power Mode)
  Primea Advanced Air System (RK/RG-97 L Power Mode)
  Primea Advanced Air System (RK/RG-97 L Tactile Mode)

  * Measured parameters: Bur: 836KR 314 016, depth: 3 mm (half cutting part length), Feed in: 0.8 mm (half cutting part diameter),
  material: marble, TK-98 L: 3 bar, RG-97 L: 320 krpm, chip air: 2 bar, water: 1.5 bar, all pressure measurements taken directly at RQ-24 coupling

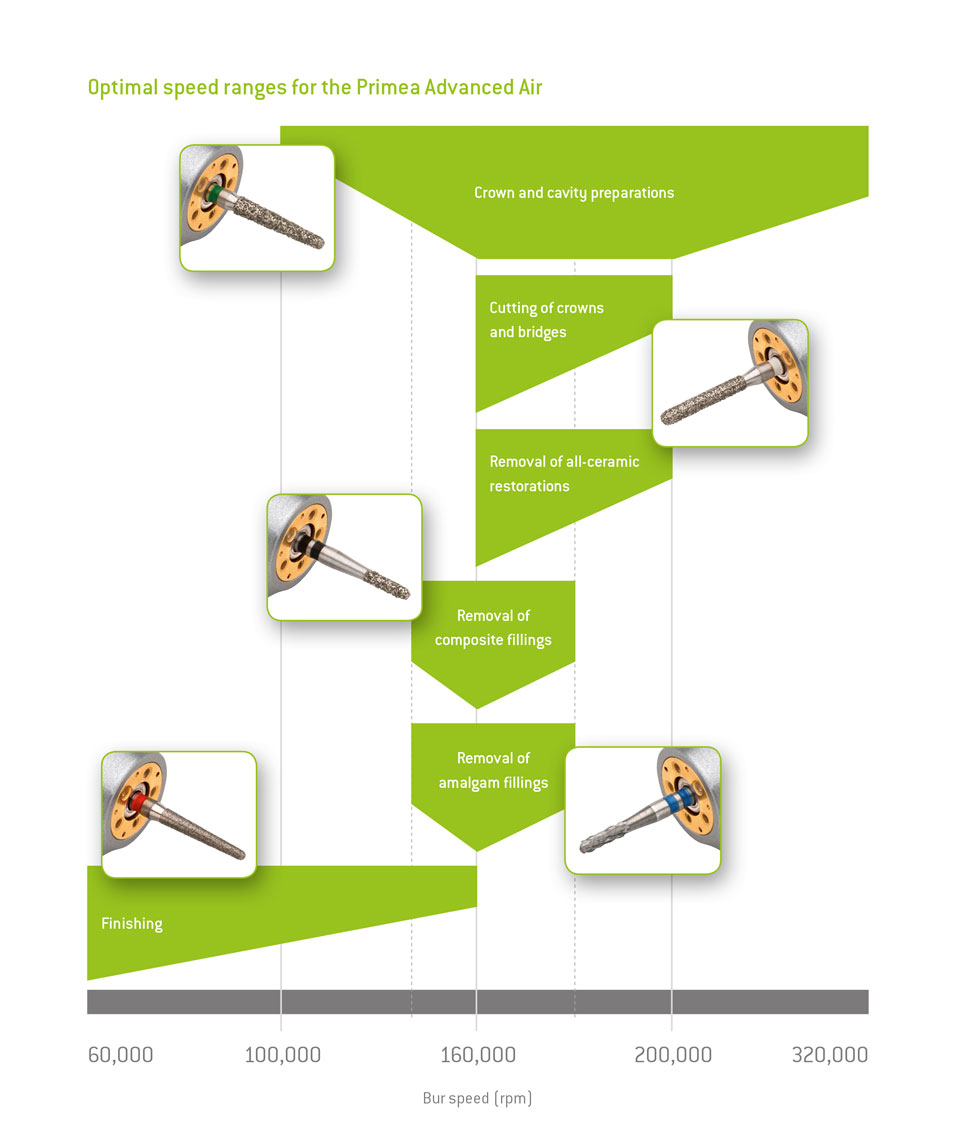

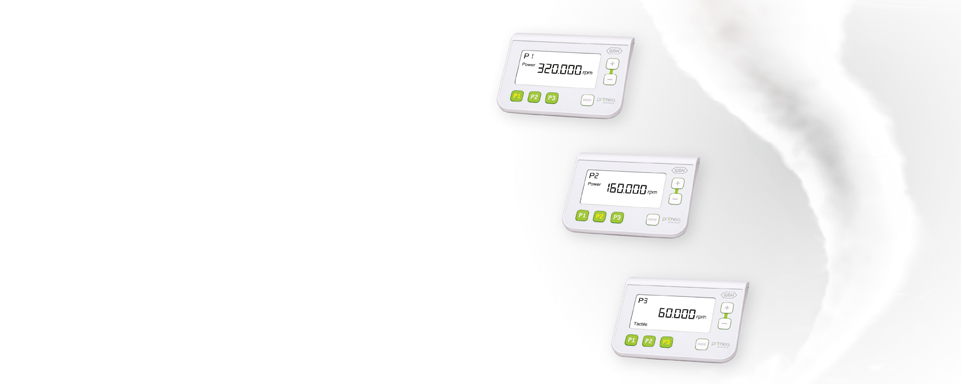

Optimal speed ranges

Crown and cavity preparations

Bur speed 320,000 rpm: Effortless opening of cavities Shape crown preparations safely

Cutting of crowns and bridges

Removal and cutting of extremely robust, indirect restorations made of ceramic or metal

Removal of amalgam fillings

Bur speed 160,000 rpm: From A for amalgam to ...

Removal of composite fillings

...C for composite to Z for zirconium dioxide remove old fillings quickly and safely

Finishing

Bur speed 60,000 rpm: Profile the preparation surface more minimally invasively Finish the preparation margins with even more control

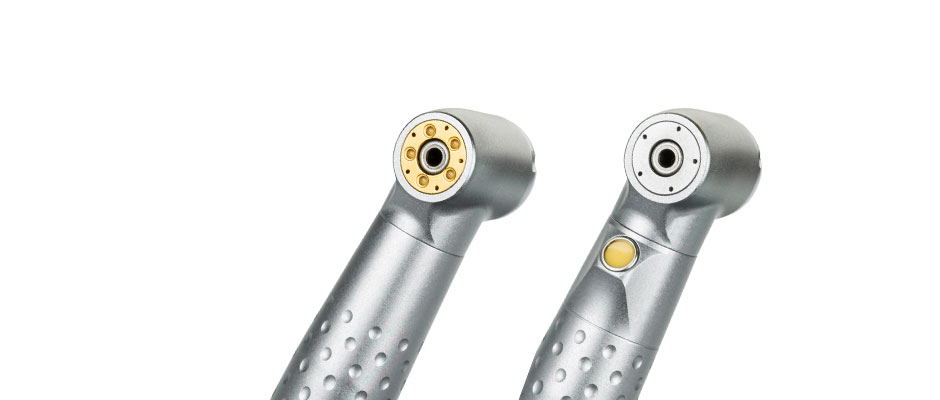

Primea Advanced Air turbines

Tactile feedback

“I love the tactile feedback. I feel the smallest imperfections on the tooth and can thus increase the quality of my work.”

Dr. Christian Müller,
Salzburg, Austria

Ring LED+

Shadowless illumination

The 5x Ring LED+ offers an
optimal view of the treatment
site with perfect contrasts.

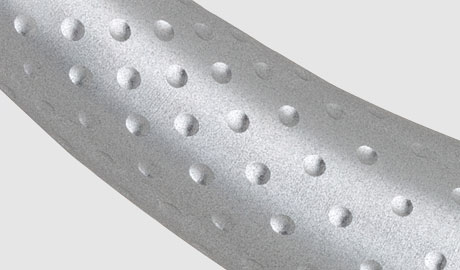

Scratch-resistant coating

Extraordinary value retention

Everyday like new with the special,
scratch-resistant coating.

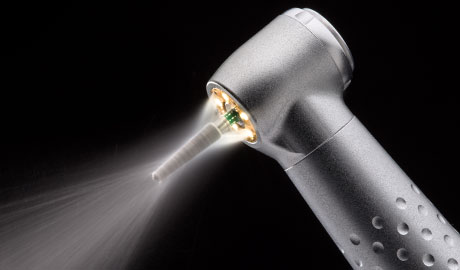

Optimum cooling

Optimum cooling

Thanks to the 5x spray the bur tip is optimally cooled
in every application position.

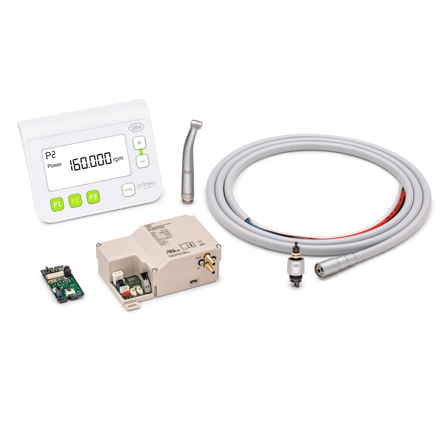

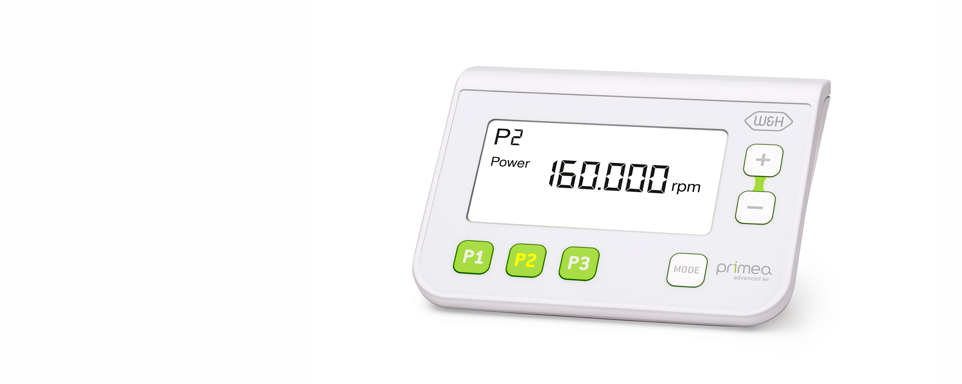

Primea Advanced Air Built-in Set

with display D-2.0 A

Built-in Set
REF 90000141

consists of:
> AC-1.0 Advanced Air Controller +
AD-1.0 Analog-digital converter
> Supply hose VA-6
> Air supply hose Ø 8 mm
> 2 connection sets
(pneumatic and electric)

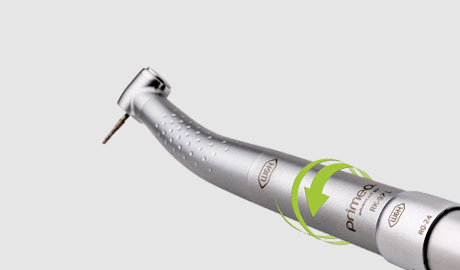

> RQ-24
> RG-97 L
> Display D-2.0 A

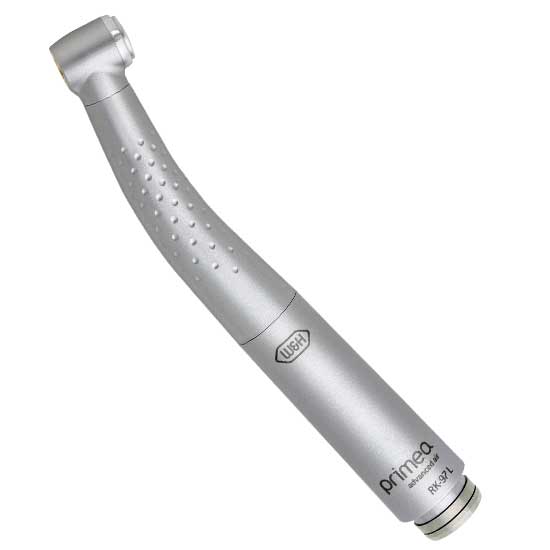

Primea Advanced Air turbine RK-97 L

5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mm

RK-97 L
REF 30221000

Ring LED+, ceramic ball bearings,
coupling system Roto Quick

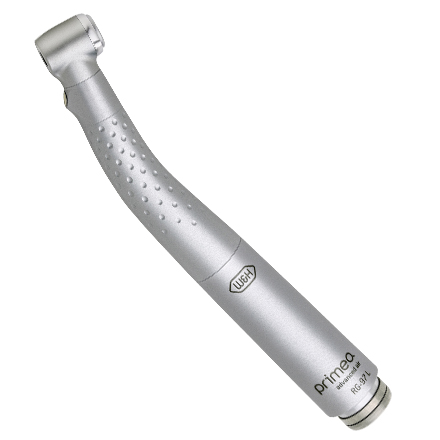

Primea Advanced Air turbine RG-97 L

5x spray,
Head size Ø 10 mm,
up to 30 W, 400,000 rpm,
Press-button chuck system
for FG burs Ø 1.6 mm for bur lengths up to 21 mm

RG-97 L
REF 30222000

LED+, ceramic ball bearings,
coupling system Roto Quick
Download Area
FAQ
- Are there different Primea Advanced Air Turbines?
  Yes, the RG-97 L is equipped with an LED to illuminate the treatment area. The RK-97 L offers you shadowless illumination of the treatment site thanks to 5x Ring LED+. Both turbines have a mini-head and five spray ports, as well as a scratch-proof surface coating. more
- Can my Primea Advanced Air Turbine be sterilized in a sterilizer?
  Yes, if your Primea Advanced Air Turbine is labelled with the symbol "Sterilizable up to the stated temperature". more
- Can my Primea Advanced Air Turbine be prepared in a thermo washer disinfector?
  Yes, if your Primea Advanced Air Turbine is labelled with the symbol "thermo washer disinfectable". more
- I have just purchased a new W&H Primea Advanced Air Turbine. How can I activate it?
  It is not sufficient to purchase the Primea Advanced Air Turbine alone. In order to be able to operate it, you need the entire Primea Advanced Air System – consisting of a turbine, control system, user interface (UI) and the supply hose with Roto Quick coupling. You can add this as an add-on or built-in solution to/in your dental unit. more
- In which versions can I purchase the Primea Advanced Air System? What are my installation options?
  W&H can offer you the Primea Advanced Air System as an external add-on which you can connect to your dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact your authorized W&H service partner to check the inlet pressure of the additional air supply hose. The Primea Advanced Air Built-in System is integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
- How can I integrate the Primea Advanced Air Built-in into my unit?
  The Primea Advanced Air System is integrated into a dental unit by selected dental unit manufacturers or their service technicians. more
- How do I connect the Primea Advanced Air Add-on to my unit?
  You can connect the external Primea Advanced Air System to the dental unit. To do this, you need a spare supply hose for your dental unit, a minimum operating pressure of 5 bar and the possibility to connect the control system to the mains power supply. Please contact an authorized W&H service partner to check the inlet pressure of the additional air supply hose. more
- Should I always call my authorized W&H service partner first before I send devices/instruments for repair?
  If you are unsure of the cause of a problem, it is better to contact your authorized W&H service partner first and talk to a service technician. Together with the service technician, malfunctions may be resolved or it may be determined which items should be sent for repair. more
- What do I do if my Primea Advanced Air Turbine does not achieve sufficient power/speed?
  Please contact your authorized W&H service partner to check the Primea Advanced Air System. more
- Which rotary instruments can be used with Primea Advanced Air Turbines?
  Primea Advanced Air Turbines with small heads (Model RG-/RK--97 L): 16 mm to 21 mm The diameter of the working part is limited to a maximum of 2 mm. Follow the operating instructions of the manufacturer. When using longer or shorter rotary instruments the user must ensure by correct selection of the operating conditions, that there is no danger to the user, patient or third parties. more
- Which speed setting should I use on the Primea Advanced Air System?
  Within the adjustable speed range of 60,000 to 320,000 revolutions, you can set the maximum permitted speed for the respective rotary instrument as specified by the manufacturer. more
- What is the maximum rotary instrument length approved by W&H for Primea Advanced Air Turbines?
  Primea Advanced Air Turbines with small heads (Model RG-/RK-97 L): 16 mm to 21 mm more
- How does the Roto Quick coupling's W&H Click & Pull System work? How do I remove a Primea Advanced Air Turbine?
  Pull the retention sleeve of the Roto Quick coupling back. The turbine can now be easily removed from the Roto Quick coupling. Forcefully pulling the Primea Advanced Air Turbine may cause damage. If excessive force is required to remove the turbine, make sure that the retention sleeve of the Roto Quick coupling can be moved without any problems. more
- How is the Primea Advanced Air System cleaned? How is it prepared?
  For detailed instructions, see the chapter "Hygiene and maintenance" in the respective instructions for Use. more
- Does the Primea Advanced Air Built-in need to be serviced?
  The built-in electronic components do not need to be serviced separately. However, regular servicing should be carried out together with the dental unit at the legally required intervals. This will ensure the proper functioning and safety of the components. For details, see the chapter "Service" in the respective instructions for Use. more
- Does the Primea Advanced Air Add-on need to be serviced?
  Regular servicing of the Primea Advanced Air Add-on including the accessories should be carried out at least once every three years, unless shorter intervals are prescribed by law. The regular service must only be performed by an authorised W&H service partner. For details, see the chapter "Service" in the respective instructions for Use. more
- Can turbines from other manufacturers be operated in a Primea Advanced Air System?
  This is possible. In order to operate standard turbines (from W&H and other manufacturers), the control system of the Primea Advanced Air System can be changed over to standard turbines mode. Turbines which can be connected to the standard 6-hole connection are then operated with a constant 3 bar operating pressure. more
- What features do the two operating modes "Power" and "Tactile" offer?
  In "Power" mode, the set speed is also constantly maintained when pressure mounts on the rotary instrument, which translates to a higher removal rate. The "Tactile" mode permits a reduction in the removal rate when pressure mounts on the rotary instrument. more
more
Downloads

Instructions for use
Primea turbines

Instructions for use D-2.0 A

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Station Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Primea Advanced Air turbines

Type:	RK-97 L	RG-97 L
Speed range as Advanced Air turbine (± 30.000 rpm):	60,000 – 320,000 rpm
Maximum power as Advanced Air turbine (Add-on):	27 W at 5.5 bar
Maximum power as Advanced Air turbine (Built-in):	30 W at 5.9 bar
Speed range as standard turbine (± 30.000 rpm):	400,000 rpm
Maximum power as standard turbine:	21 W
Head with bur:	Ø 10 mm
Head height with bur (19 mm):	21.1 mm
Weight:	39 g
Noise level:	57 dB (A)
Rotary instruments: Maximum working part diameter: Maximum permissible length:	FG bur Ø 1.6 mm, compliant with ISO 1797 2 mm 21 mm
Coupling:	Roto Quick
Light:	Ring LED+	LED+
Illuminating power:	25,000 Lux
Spray:	5x
Ball bearing:	Ceramic
Warranty:	24 months	12 months
