The sterilizer remains switched OFF.

POSSIBLE CAUSE The main switch or network circuit breaker is OFF. SOLUTION Activate the main switch or network circuit breaker (ON). POSSIBLE CAUSE No voltage at the socket. SOLUTION Check the building electrical supply. POSSIBLE CAUSE The power cord is not connected properly. SOLUTION Check and connect the power cord properly.

Should I pouch/wrap my instruments and how long can I store them after sterilization?

To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer.

Which water quality should I use for my sterilizer?

The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardized. Consequently, only water with conductivity of less than 15 µS/cm should be used for your W&H sterilizer. The Water treatment devices is especially suited to preparing suitable water (see chapter “Water quality” in the Instructions for Use).

Whom should I contact to validate and maintain my sterilizer?

Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorised technician.

Does my sterilizer need any periodic qualification/validation?

Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer.

How long should I archive the documentation of regular tests?

Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well.

Do I need to document the results of all periodic tests?

W&H recommends recording all periodic tests, repairs and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsories of recording is regulated by local/national guidelines.

At the end of the cycle, there is residual water in the chamber.

POSSIBLE CAUSE Sterilizer not properly levelled. SOLUTION Place the sterilizator on a flat, level surface. POSSIBLE CAUSE Overloaded chamber. SOLUTION Comply with the maximum load weight limits for each type of load. Always use the chamber rack for trays and cassettes. POSSIBLE CAUSE Chamber filter clogged. SOLUTION Remove and clean the chamber filter. POSSIBLE CAUSE Chamber filter cap mispositioned. SOLUTION Mount the chamber filter cap properly (see chapter “Monthly or 50-cycle maintenance - Cleaning the chamber filter” in the Instructions for Use). POSSIBLE CAUSE Load incorrectly placed. SOLUTION Follow the recommendations as listed in chapter “Load maintenance and preparation” in the Instructions for Use.

Water is leaking at the front of the sterilizer.

POSSIBLE CAUSE Leaks through the chamber door seal. SOLUTION Clean or replace the door seal. Clean the door surface facing the chamber. POSSIBLE CAUSE Internal leak. SOLUTION Contact an authorized W&H service partner.

The cycle report printer does not work.

POSSIBLE CAUSE Printer not properly connected or not powered. SOLUTION Check the data and power connection to the printer.

The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.

POSSIBLE CAUSE Water filling system not connected. SOLUTION Connect the water filling system to the sterilizer. (see ANNEX 7 For water quality requirements see chapter “Water quality” in the Instructions For Use). POSSIBLE CAUSE When the water filling system attempted to fill the tank, water was temporarily unavailable. SOLUTION Since the water tank filling is attempted only once in-between cycle execution, this event inhibits water feeding. Switch the sterilizer OFF and then ON again. Check the external water supply system. Check for water leaks from the sterilizer. POSSIBLE CAUSE Faulty MIN water level sensor in the clean water tank. SOLUTION Contact an authorized W&H service partner.

Warning about programmed maintenance.

POSSIBLE CAUSE The maintenance program needs to be carried out. SOLUTION Contact an authorized W&H service partner.

The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.

POSSIBLE CAUSE The chamber temperature dropped below the minimum threshold and the software performed a successful recovery. SOLUTION Wait for cycle completion. If the problem occurs frequently, contact an authorised W&H service partner.

The sterilizer enters into “Standby mode” immediately after being switched on.

POSSIBLE CAUSE The unit was turned off while in standby mode. SOLUTION Press the standby mode button to exit.

When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.

POSSIBLE CAUSE Door seal not properly placed. SOLUTION Ensure that the door seal is correctly inserted around the whole circumference. POSSIBLE CAUSE Door jammed by external objects or by the load itself. SOLUTION Remove any objects interfering with the chamber door. Check for interference between the door and the chamber furniture and/or the load.

No cycles are stored in the cycle history menu.

POSSIBLE CAUSE An electronic board was replaced when serviced. SOLUTION The memory of the old board can not be restored. Consult the cycle history in the USB pen drive.

Stains or spots on instruments.

POSSIBLE CAUSE Instruments rinsed with tap water and not dried before sterilization. SOLUTION Ensure that instruments are rinsed with distilled or demineralized water and completely dry before they are placed in the sterilizer. POSSIBLE CAUSE Use of water of poor quality or water containing chemical substances. SOLUTION Drain both water tanks. Use good quality water (see chapter “Water quality” in the Instructions for Use). POSSIBLE CAUSE Organic or chemical residues on the instruments SOLUTION Clean, rinse and dry instruments before placing them in the sterilizer (see chapter “Load maintenance and preparation” in the Instructions for Use. POSSIBLE CAUSE Dirt in chamber, trays, tray rack. SOLUTION Clean the chamber and wash the chamber furniture. POSSIBLE CAUSE Contact between instruments of different materials. SOLUTION Ensure that instruments of different materials do not touch each other (aluminium, carbon or stainless steel, etc.); place them on different trays or cassettes or pouch them (see chapter “Load maintenance and preparation” in the Instructions for Use). POSSIBLE CAUSE Scale deposits on the chamber. SOLUTION Clean the chamber and use good quality water (see chapter “Water quality” in the Instructions for Use).

How do I clean the water tanks and what products should I use?

Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. Information and videos relating to the cleaning of the water tanks and cleaning products can also be found on the Video Tutorial section of this web site.

What is the maximum noise level of the Lara sterilizer?

The max. noise level of Lara is 66.9 dB.

Do I need to carry out periodic testing on my W&H Sterilizer?

All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines.

Warning about consumable replacement.

POSSIBLE CAUSE A consumable needs to be replaced. SOLUTION Order the requested consumable (door seal, dust filter, bacteriological filter) and replace it. See the chapter “Maintenance” in the Instructions for Use.

How do I change consumable components on my sterilizer?

Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu (only for Lisa); • in the Consumables & Accessories and Video Tutorial section of this web site.

Warning about saving to the USB (HTML and SCL files)

POSSIBLE CAUSE The USB mass storage is disconnected or full. SOLUTION Check presence and condition of the USB pen drive. If the problem persist, contact an authorized W&H service partner.

Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines.

Lara sterilizer

Name: Lara - Water steam sterilizer for dental practices
Brand: W&H

Incredible inside & outside

As unique as your practice
The standard versions of the Lara sterilizers already offer the fastest sterilization cycle in their class – including standard documentation. An additional, newly developed upgrade system offers even more speed and extended documentation if you so wish – and ensures you are optimally equipped even if your requirements change.

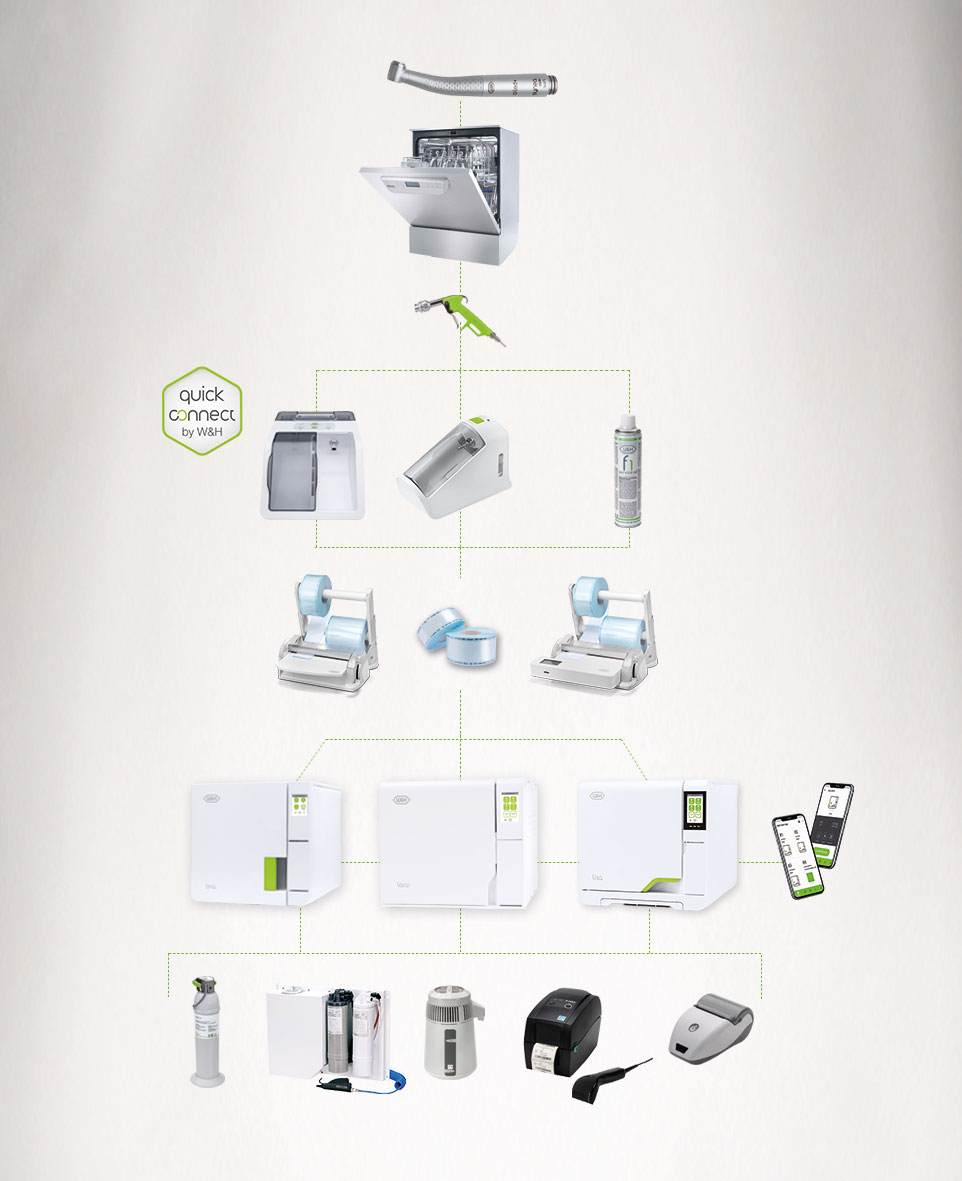

System Overview

Lara
Technical data

Lara Sterilizers
Ready for the future

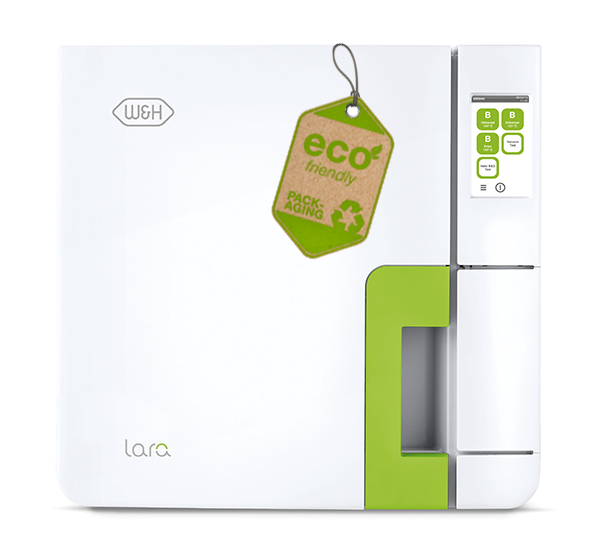

Incredible outside
You don’t need to be a lover of design to appreciate the Lara sterilizers. Their smooth surfaces are comfortable to the touch, the instruments are easy to load and the flat colour screen displays allow you to navigate through the intelligent menu structure quickly and with ease.

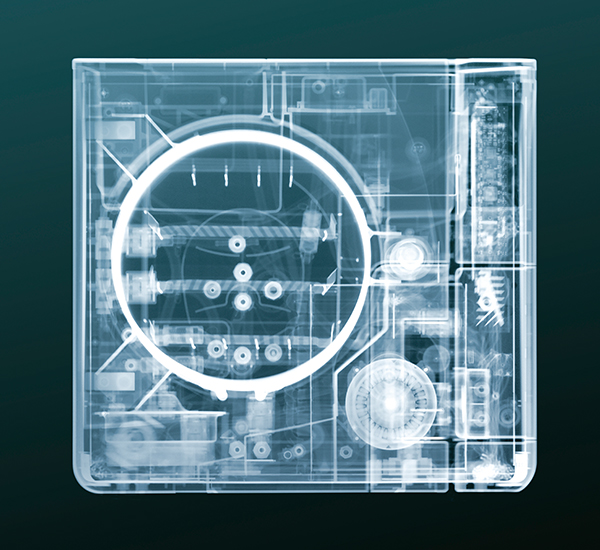

Incredible inside
Discover the W&H Lara sterilizers down to the smallest detail. So many components, perfectly arranged to offer you complete satisfaction by simplifying the sterilization process while providing you with comprehensive documentation. Unique upgradeability allows you to customise your Lara sterilizer with your personal needs and to comply with regulatory requirements.
Incredible because
- Fastest B cycle in its segment
- Unique upgradeability thanks to Activation Codes
- Colour touch display for easy navigation
- Automatic cycle record via high capacity USB stick
- Optional high end label and cycle report printer
- Ergonomics and functional design
- Ideal dimensions to integrate and operate
- New environmentally friendly packaging
  The new environmentally friendly packaging is completely reusable and recyclable. Plastic components were reduced to a minimum. For 99% of its weight, the new package is made of cardboard and other fully biodegradable substances.
Fastest in its segement
Even with the basic equipment, the Lara sterilizers offer you the fastest B cycle in their performance segment.

Upgradeable
Customize your sterilizer simply by using the new Activation Code system for even higher speed and comprehensive documentation.

Easy to use
Explore new ergonomic thanks to the large colour display and intelligent menu structure.
- Reliable traceability

  Discover simple operation & reliable traceability

  The Lara colour touch screen has been selected and designed to make your daily work easier, faster and more efficient. Lara also offers a comprehensive traceability system customized to your needs.
- Easy to use

  Easy to use

  The intelligent menu structure of the Lara sterilizers ensures extraordinarily high operating comfort: you can browse to the preset programmes quickly and intuitively using the large colour touchscreen.
- Data logger

  High capacity data logger

  An high capacity USB drive automatically records the cycle reports throughout Lara’s entire service life. Optionally available: the Lara label and cycle report printer with which you can document the traceability without an additional computer or separate software.
- User identification

  User identification

  You can also acquire additional features such as user identification with Activation Codes: the user who has loaded/unloaded the sterilizer can be digitally recorded. Users are identified by a 6-digit PIN.
- Load release confirmation

  Load release confirmation

  Also available as an upgrade: the approval confirmation. This option digitally records the name of the end user and their confirmation of the successful sterilization and/or test cycle.
Easy filling
A high capacity integrated funnel prevents water splashes during the filling process.

Effortless tank access
The tank cover can be easily removed without tools to clean the tank.

Automatic water filling
An automatic water filling valve allows you to connect a demineralization system. Manual filling and draining are no longer required.

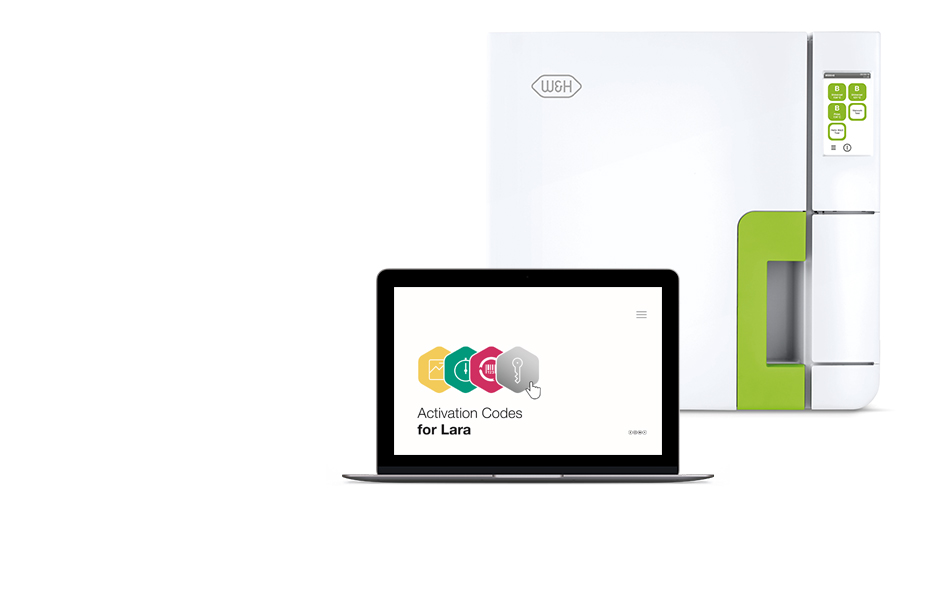

Discover unique upgradeability

Whatever occurs in the future, with the Lara sterilizers you’re well prepared.

Effectively, their innovative upgradability system offers you a cost-efficient, rapid and customized opportunity to activate additional features to reflect your practice needs or comply with future requirements.

The four additional features at a glance:

Performance
Even faster cycle times by upgrading to Eco Dry +, which automatically adapts the drying time to the mass of the load. This saves time and energy.

Fast Cycle
The quick cycle for in-between: the Fast Cycle allows sterilization of unpackaged, semi-critical instruments in just 20 minutes.

Traceability
The “Traceability” feature allows customization of the sterilizer and therefore traceability back to the person who initiated the sterilization cycle. They identify themselves with a 6-digit PIN directly on the device.

All in One

With the "All in One" Activation Code you have all benefits in one go – and ultimately your sterilizer comes at a previously unattainable priceperformance ratio.

Six steps to your customized sterilizer:
1. Purchase Activation Code of your choice from your local approved dental supplier.
2. After receiving the related login code go to activation.wh.com
3. You specify this code along with the serial number and model of your sterilizer.
4. Your individual, secure Activation Code is generated.
5. Enter this code in the menu of your Lara sterilizer.
6. The feature is available.
ACTIVATE FEATURE NOW!
- ioDent<sup>®</sup>

  ioDent^®

  With ioDent^®, W&H brings the Internet of Things (IoT) directly into you practice – opening up new dimensions in efficiency, convenience, and digital connectivity. The cloud-based platform intelligently connects your W&H devices, making them an active part of your digital workflow.

  Benefit from automated documentation of cycle protocols and routine tests, real-time monitoring, central device management and much more.

  Discover all ioDent^® features
- W&H Steri App

  W&H Steri App

  The W&H Steri App is an advanced smartphone and tablet application that allows controlling and remote monitoring of the sterilizer in your dental practice.

  Main features:
  * Remote control of your sterilizer
  * Advanced traceability with EliTrace
  * Report creation
  * User management
  * Backup functionality

  W&H Steri App
Discover outstanding performance

The Lara sterilizers offer you one of the fastest type B in its performance class right from the standard version. And you can improve them even by activating the additional features Eco Dry + and Fast Cycle.

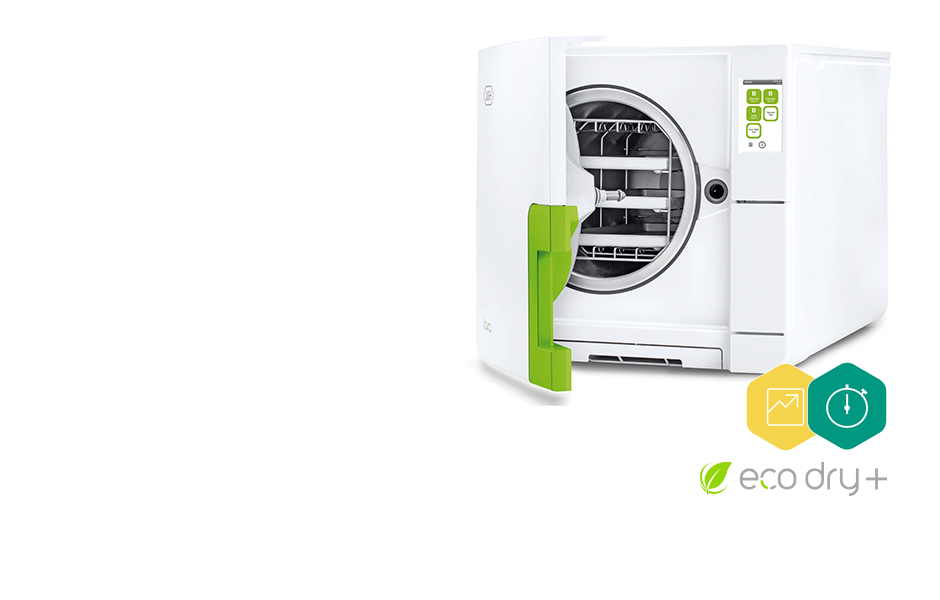

Eco Dry + automatically adapts the drying time to the load – and, in doing so, saves time and energy. Additionally available via an Activation Code: a type S fast cycle for unpackaged, semicritical products.

Time saving
Type B cycles process and perfectly dry 2 KG OF LOAD IN ONLY 40 MINUTES.

Extends service life
Automatic adjustment of the drying time depending on the load reduces the heat exposure time. This extends the service life of your instruments.

Energy saving
The optimization of the drying time means reduced energy consumption. Making Lisa the »green solution«.

Reprocessing in less than 23 minutes!

Wipe disinfection in
1 minute
Disinfect your instruments before cleaning and servicing by wiping them.

Maintenance in
10 seconds
The Assistina Twin reduces the maintenance process to a record time of 10 seconds.

Sterilization in 20 minutes
With the Lara fast cycle, the instruments can be removed from the sterilizer ready for use after only 20 minutes.

Lara sterilizer

supplied with reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test

Lara 17
REF 19941122

Chamber size 17 l

Lara 22
REF 19942122

Chamber size 22 l

Request Price

Buy Now

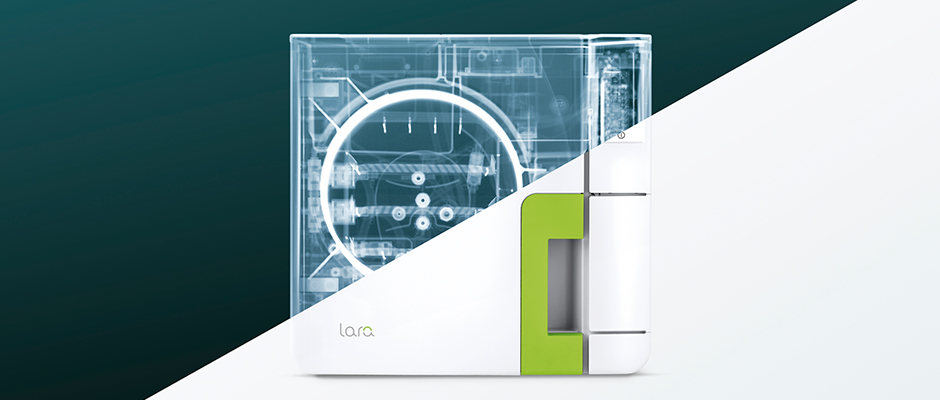

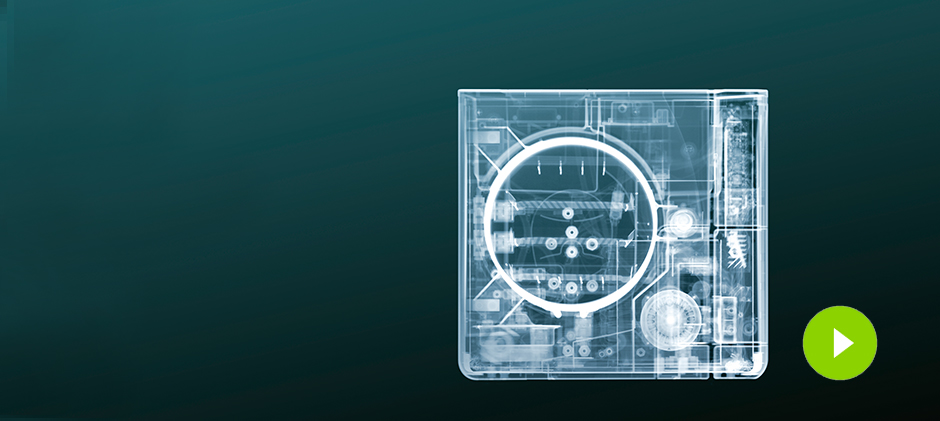

X-ray Image by Nick Veasey for W&H.
Find out more about the creation of the X-ray image on our Video Channel.
Download Area
FAQ
- The sterilizer remains switched OFF.
  POSSIBLE CAUSE
  The main switch or network circuit breaker is OFF.
  SOLUTION
  Activate the main switch or network circuit breaker (ON).

  POSSIBLE CAUSE
  No voltage at the socket.
  SOLUTION
  Check the building electrical supply.

  POSSIBLE CAUSE
  The power cord is not connected properly.
  SOLUTION
  Check and connect the power cord properly. more
- Should I pouch/wrap my instruments and how long can I store them after sterilization?
  To ensure that your instruments are stored in a sterile state from their successful sterilization until they are used, W&H recommends wrapping them in suitable sterile barrier systems before sterilization. The recommended storage period can be found in the recommendations of the wrapping material manufacturer. For further information, please contact your dealer. more
- Which water quality should I use for my sterilizer?
  The water quality for sterilizers is internationally specified by standards and directives. The reasons for this are that your sterilizer can be seriously damaged by it or the sterilization can be jeopardized. Consequently, only water with conductivity of less than 15 µS/cm should be used for your W&H sterilizer. The Water treatment devices is especially suited to preparing suitable water (see chapter “Water quality” in the Instructions for Use). more
- Whom should I contact to validate and maintain my sterilizer?
  Validation shall be carried out by an official authority. Maintenance tasks shall be carried out by a qualified and authorised technician. more
- Does my sterilizer need any periodic qualification/validation?
  Validation generally comprises a range of tests defined in internationally recognised standards. These tests begin for every device with the factory tests at W&H. In addition, corresponding documentation is included with your device. Prior to commissioning the device at your premises, the technician performs further checks to ensure the device functions correctly. Then, depending on the national/regional laws and directives, the device must be subjected to a so-called renewed performance qualification at regular intervals. For further information, please contact your dealer. more
- How long should I archive the documentation of regular tests?
  Keep the results according to your country/regional specific laws and guidelines. Those records can be of assistance in case of service as well. more
- Do I need to document the results of all periodic tests?
  W&H recommends recording all periodic tests, repairs and modifications on the sterilizer in a logbook including date and signature of the person who carried out the test or other activity. Compulsories of recording is regulated by local/national guidelines. more
- At the end of the cycle, there is residual water in the chamber.
  POSSIBLE CAUSE
  Sterilizer not properly levelled.
  SOLUTION
  Place the sterilizator on a flat, level surface.

  POSSIBLE CAUSE
  Overloaded chamber.
  SOLUTION
  Comply with the maximum load weight limits for each type of load. Always use the chamber rack for trays and cassettes.

  POSSIBLE CAUSE
  Chamber filter clogged.
  SOLUTION
  Remove and clean the chamber filter.

  POSSIBLE CAUSE
  Chamber filter cap mispositioned.
  SOLUTION
  Mount the chamber filter cap properly (see chapter “Monthly or 50-cycle maintenance - Cleaning the chamber filter” in the Instructions for Use).

  POSSIBLE CAUSE
  Load incorrectly placed.
  SOLUTION
  Follow the recommendations as listed in chapter “Load maintenance and preparation” in the Instructions for Use. more
- Water is leaking at the front of the sterilizer.
  POSSIBLE CAUSE
  Leaks through the chamber door seal.
  SOLUTION
  Clean or replace the door seal. Clean the door surface facing the chamber.

  POSSIBLE CAUSE
  Internal leak.
  SOLUTION
  Contact an authorized W&H service partner. more
- The cycle report printer does not work.
  POSSIBLE CAUSE
  Printer not properly connected or not powered.
  SOLUTION
  Check the data and power connection to the printer. more
- The sterilizer is connected to an automated water supply system, there is no clean water in the tank and the automatic water filling does not fill the water.
  POSSIBLE CAUSE
  Water filling system not connected.
  SOLUTION
  Connect the water filling system to the sterilizer. (see ANNEX 7 For water quality requirements see chapter “Water quality” in the Instructions For Use).

  POSSIBLE CAUSE
  When the water filling system attempted to fill the tank, water was temporarily unavailable.
  SOLUTION
  Since the water tank filling is attempted only once in-between cycle execution, this event inhibits water feeding. Switch the sterilizer OFF and then ON again.
  Check the external water supply system.
  Check for water leaks from the sterilizer.

  POSSIBLE CAUSE
  Faulty MIN water level sensor in the clean water tank.
  SOLUTION
  Contact an authorized W&H service partner. more
- Warning about programmed maintenance.
  POSSIBLE CAUSE
  The maintenance program needs to be carried out.
  SOLUTION
  Contact an authorized W&H service partner. more
- The sterilization (PROCESS) phase of a sterilization cycle was longer than expected.
  POSSIBLE CAUSE
  The chamber temperature dropped below the minimum threshold and the software performed a successful recovery.
  SOLUTION
  Wait for cycle completion. If the problem occurs frequently, contact an authorised W&H service partner. more
- The sterilizer enters into “Standby mode” immediately after being switched on.
  POSSIBLE CAUSE
  The unit was turned off while in standby mode.
  SOLUTION
  Press the standby mode button to exit. more
- When starting a cycle, the chamber door locks but re-opens immediately. The “Open the door” message appears.
  POSSIBLE CAUSE
  Door seal not properly placed.
  SOLUTION
  Ensure that the door seal is correctly inserted around the whole circumference.

  POSSIBLE CAUSE
  Door jammed by external objects or by the load itself.
  SOLUTION
  Remove any objects interfering with the chamber door. Check for interference between the door and the chamber furniture and/or the load. more
- No cycles are stored in the cycle history menu.
  POSSIBLE CAUSE
  An electronic board was replaced when serviced.
  SOLUTION
  The memory of the old board can not be restored. Consult the cycle history in the USB pen drive. more
- Stains or spots on instruments.
  POSSIBLE CAUSE
  Instruments rinsed with tap water and not dried before sterilization.
  SOLUTION
  Ensure that instruments are rinsed with distilled or demineralized water and completely dry before they are placed in the sterilizer.

  POSSIBLE CAUSE
  Use of water of poor quality or water containing chemical substances.
  SOLUTION
  Drain both water tanks. Use good quality water (see chapter “Water quality” in the Instructions for Use).

  POSSIBLE CAUSE
  Organic or chemical residues on the instruments
  SOLUTION
  Clean, rinse and dry instruments before placing them in the sterilizer (see chapter “Load maintenance and preparation” in the Instructions for Use.

  POSSIBLE CAUSE
  Dirt in chamber, trays, tray rack.
  SOLUTION
  Clean the chamber and wash the chamber furniture.

  POSSIBLE CAUSE
  Contact between instruments of different materials.
  SOLUTION
  Ensure that instruments of different materials do not touch each other (aluminium, carbon or stainless steel, etc.); place them on different trays or cassettes or pouch them (see chapter “Load maintenance and preparation” in the Instructions for Use).

  POSSIBLE CAUSE
  Scale deposits on the chamber.
  SOLUTION
  Clean the chamber and use good quality water (see chapter “Water quality” in the Instructions for Use). more
- How do I clean the water tanks and what products should I use?
  Water tank cleaning instructions are provided in the Instructions for Use, chapter “Maintenance”. Information and videos relating to the cleaning of the water tanks and cleaning products can also be found on the Video Tutorial section of this web site. more
- What is the maximum noise level of the Lara sterilizer?
  The max. noise level of Lara is 66.9 dB. more
- Do I need to carry out periodic testing on my W&H Sterilizer?
  All W&H sterilizers features test cycles (B&D/Helix test, Vacuum test). Compulsory and frequency of testing are regulated by local/national guidelines. more
- Warning about consumable replacement.
  POSSIBLE CAUSE
  A consumable needs to be replaced.
  SOLUTION
  Order the requested consumable (door seal, dust filter, bacteriological filter) and replace it. See the chapter “Maintenance” in the Instructions for Use. more
- How do I change consumable components on my sterilizer?
  Consumable replacement instructions are provided in the Instructions for Use, chapter “Maintenance”. In addition, a video description is available: • in the sterilizer, in the maintenance section of the menu (only for Lisa); • in the Consumables & Accessories and Video Tutorial section of this web site. more
- Warning about saving to the USB (HTML and SCL files)
  POSSIBLE CAUSE
  The USB mass storage is disconnected or full.
  SOLUTION
  Check presence and condition of the USB pen drive. If the problem persist, contact an authorized W&H service partner. more
- What is validation?
  Validation is a testing procedure carried out by an official authority, proving the effectiveness of your sterilizer. Compulsories and frequency of validation are regulated by local/national guidelines. more
more
Instructions for use

Instructions for use
Lara sterilizer

Maintenance Sheet
Lara RIL-1 2019

Find all languages of the Update Hygiene and Maintenance (EN ISO 17664:2017) in the Download Centre.

Downloads

Brochure Lara

Environmental labelling of packaging

Videos & Tutorials

For a seamless and interactive online experience of our multimedia content (e.g. videos, maps), please accept the storage of the necessary cookies (YouTube, MovingImage - detailed information on these cookies can be found in the imprint/data protection) for marketing purposes.

Accept
Service
Service

Service Centre Locator

Hygiene & Maintenance

Disposal Guidelines

Troubleshooting

Lara sterilization cycles

Sterilization cycle		B-Universal 134		B-Prion 134		B-Universal 121	S FAST 134 (optional)
Temperature:		134 °C		134 °C		121 °C	134 °C
Holding time (minutes):		4		18.5		20.5	3.5
Total cycle duration (minutes) including complete drying:
	Lara 17	Automatic from 25 to 51	37	Automatic from 40 to 65	52	41 to 73	20 to 22
	Lara 22	Automatic from 28 to 55	39	Automatic from 40 to 68	54	42 to 76	20 to 22
Lara 17 loads: Lara 22 loads:		maximum solid 4.5 kg/typical 2 kg/maximum porous 1.5 kg maximum solid 5.5 kg/typical 2 kg/maximum porous 2 kg					max. unwrapped 2 kg max. unwrapped 2 kg
Lara 17/22 containers load:		maximum 9 kg				maximum 9 kg
Test cycles:		Helix/Bowie Dick/Vacuum test

Items supplied with: reversible rack, 3 aluminium trays, drain tube, tray holder, 8 GB USB drive, door opening tool, factory test

Lara

Trade name:	Lara
Type:	RIL-117	RIL-122
Chamber size:	17 l	22 l
Power supply:	200–240 V AC; 50/60 Hz; 10 A
Power consumption:	2.0–2.4 kW
Overall dimension (width x height x depth):	465 x 452 x 646 mm
Weight:	42.5 kg	44 kg
Main / Used water tanks:	4.8/4.8 l
Working range:	7 to 15 cycles
Usable space in chamber (width x height x depth)¹:	195 x 195 x 312 mm	195 x 195 x 400 mm
Connection types:	2 USB ports (5 as option), integrated automatic water filling valve

^{(1) Usable space is referred to standard rack configuration.}

Lara sterilizers were designed, certified and validated with the most stringent directives and standards:
N°2017/745	Medical Device Regulation	IEC 61326-1	Electromagnetic compatibility
2014/68/EU	Pressure equipment Directive	IEC 61010-1	Safety requirements sterilizer
EN 13060	Small steam sterilizer	IEC 61010-2-040	Specific requirements for steam sterilizer
IEC 61770	Electric appliances connected to the water mains	2012/19/EU	Waste Electrical and Electronic Equipment

Lara sterilizer

Incredible inside & outside

Lara Sterilizers
Ready for the future

Incredible because

Reliable traceability

Discover simple operation & reliable traceability

Easy to use

Easy to use

Data logger

High capacity data logger

User identification

User identification

Load release confirmation

Load release confirmation

Discover unique upgradeability

Whatever occurs in the future, with the Lara sterilizers you’re well prepared.

Six steps to your customized sterilizer:

ioDent<sup>®</sup>

ioDent^®

W&H Steri App

W&H Steri App

Discover outstanding performance

The Lara sterilizers offer you one of the fastest type B in its performance class right from the standard version. And you can improve them even by activating the additional features Eco Dry + and Fast Cycle.

Reprocessing in less than 23 minutes!

Lara sterilizer

Download Area

FAQ

Instructions for use

Downloads

Videos & Tutorials

Service

Lara sterilization cycles

Lara

Reports and studies

Accessories & Consumables

Related products

Proxeo Ultra

Incredible!

Where To Buy

Request Price ()

Lara sterilizer

Incredible inside & outside

Sterilization, Hygiene & Maintenance

Sterilization, Hygiene & Maintenance

System Overview

Lara SterilizersReady for the future

Incredible because

Reliable traceability

Discover simple operation & reliable traceability

Easy to use

Easy to use

Data logger

High capacity data logger

User identification

User identification

Load release confirmation

Load release confirmation

Discover unique upgradeability

Whatever occurs in the future, with the Lara sterilizers you’re well prepared.

Six steps to your customized sterilizer:

ioDent<sup>®</sup>

ioDent®

W&H Steri App

W&H Steri App

Discover outstanding performance

The Lara sterilizers offer you one of the fastest type B in its performance class right from the standard version. And you can improve them even by activating the additional features Eco Dry + and Fast Cycle.

Reprocessing in less than 23 minutes!

Lara sterilizer

Download Area

FAQ

Instructions for use

Downloads

Videos & Tutorials

Service

Lara sterilization cycles

Lara

Reports and studies

Accessories & Consumables

Related products

Proxeo Ultra

Incredible!

Where To Buy

Request Price ()

Choose your language:

My information

Contact Form

Centre de téléchargement

Centre de téléchargement

Lara Sterilizers
Ready for the future

ioDent^®
